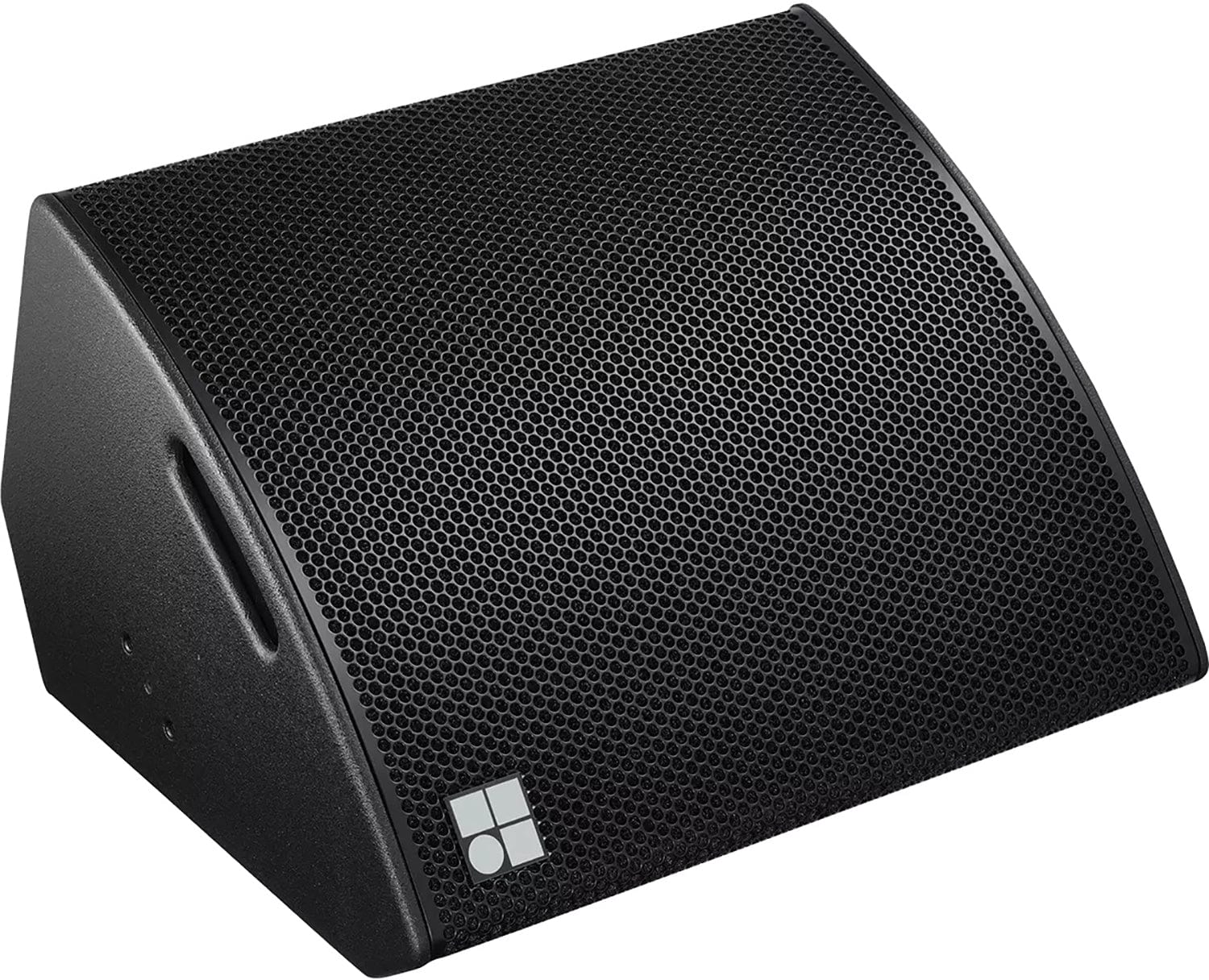

D&B Audiotechnik Z1120.002 MAX2 Active Stage Monitor with NLT4 F/M Connections
Get ready to experience the power of the 2-way passive MAX2 loudspeaker! It's like having a professional sound system right at your fingertips. This amazing monitor houses a 15” LF driver and a coaxially mounted 1.4” HF compression driver, delivering a 75° conical constant directivity dispersion that fills the air with incredible sound.
The driver arrangement with a single magnet assembly allows for a compact cabinet design, perfect for those with strict visual demands. Whether you're using it as a stage monitor on your own, as a stand-alone full range system, or combining it with d&b subwoofers for a killer drumfill, the MAX2 offers endless possibilities.

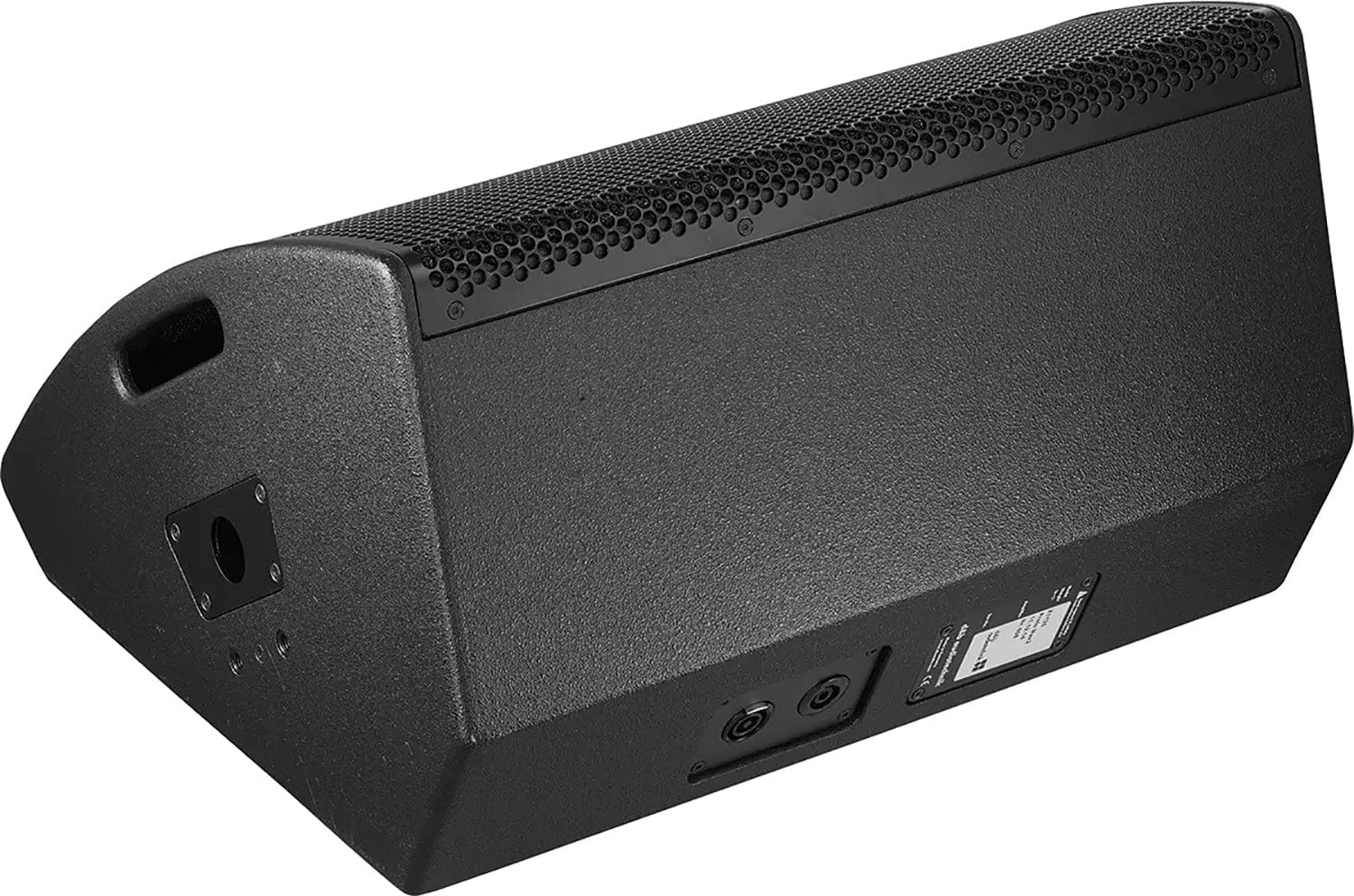

Built in marine plywood with an impact resistant paint finish, this monitor is tough as nails. Four M10 threaded inserts let you connect to a flying bracket easily. The pair of recessed grips make it a breeze to handle, and the rigid metal grill with an acoustically transparent foam protects the front. There's even a pole mount on one of the side panels and two runners on the bottom panel to keep it safe and scratch-free.
Features:
- • High feedback stability and sound pressure level for an immersive experience
- • Remarkable vocal presence and clarity, making every word stand out
- • Integrated pole mount for easy setup in small PA applications
- • Specific setup in d&b amplifiers ensures top-notch performance and headroom
- • Can also be driven by any appropriate linear amplifier, giving you flexibility
Specifications:
- System data:
- Frequency response (-5 dB standard): 55 Hz - 20 kHz
- Max. sound pressure:
- with 10D: 131 dB
- with D20/30D: 135 dB
- with D40/D80/40D: 135 dB
- Cabinets per amplifier channel: 2
- Loudspeaker data:
- Configuration: 2-way stage monitor
- Nominal impedance: 8 Ω
- Power handling capacity (RMS/peak 10 ms): 250/1600 W
- Nominal dispersion angle (h x v): 75°
- Components:
- 15' driver with ferrite magnet
- coaxial 1.4' exit compression driver
- passive crossover network
- Connections: 2 x NLT4 F/M
- Dimensions / weight:
- Dimensions (H x W x D): 354 x 580 x 496 mm (14 x 22.8 x 19.5'3)
- Weight: 23 kg (50 lb)
The D&B Audiotechnik Z1120.002 MAX2 is a powerful active stage monitor. It's great for musicians, DJs, and sound engineers performing on stage. With dimensions of 354 x 580 x 496 mm and weighing 23 kg, it's easy to handle. Use it as a stage monitor, a stand-alone full range system, or pair it with subwoofers. It has high feedback stability, remarkable vocal clarity, and an integrated pole mount for small PA setups.
