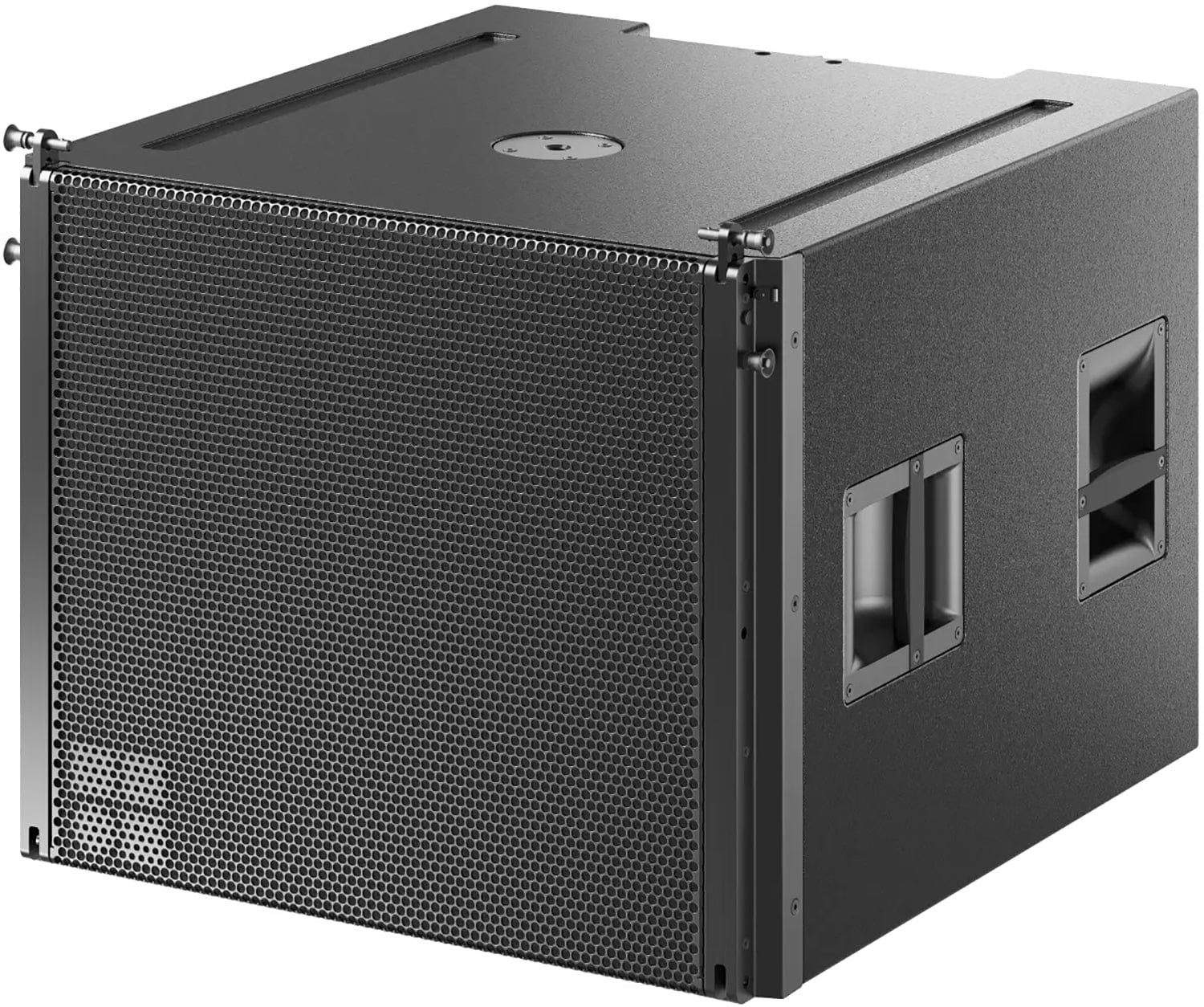

D&B Audiotechnik Z0774.000 XSL-SUB Subwoofer with NLT4 F/M Connections
The XSL-SUB is a cardioid subwoofer designed for the XSL System. It's perfect for enhancing your sound setup in various scenarios. Here are its key features:
- • Complementary Sound: Ideal for supplementing XSL8 and XSL12 loudspeakers, whether flown (XSL-SUB) or ground stacked (XSL-GSUB).
- • Cardioid Power: Its cardioid dispersion pattern cuts down on unwanted energy, delivering highly accurate low frequency reproduction with less reverberation.
- • Durable Build: Constructed from marine plywood with a PCP finish, and protected by metal grilles for impact and weather resistance.

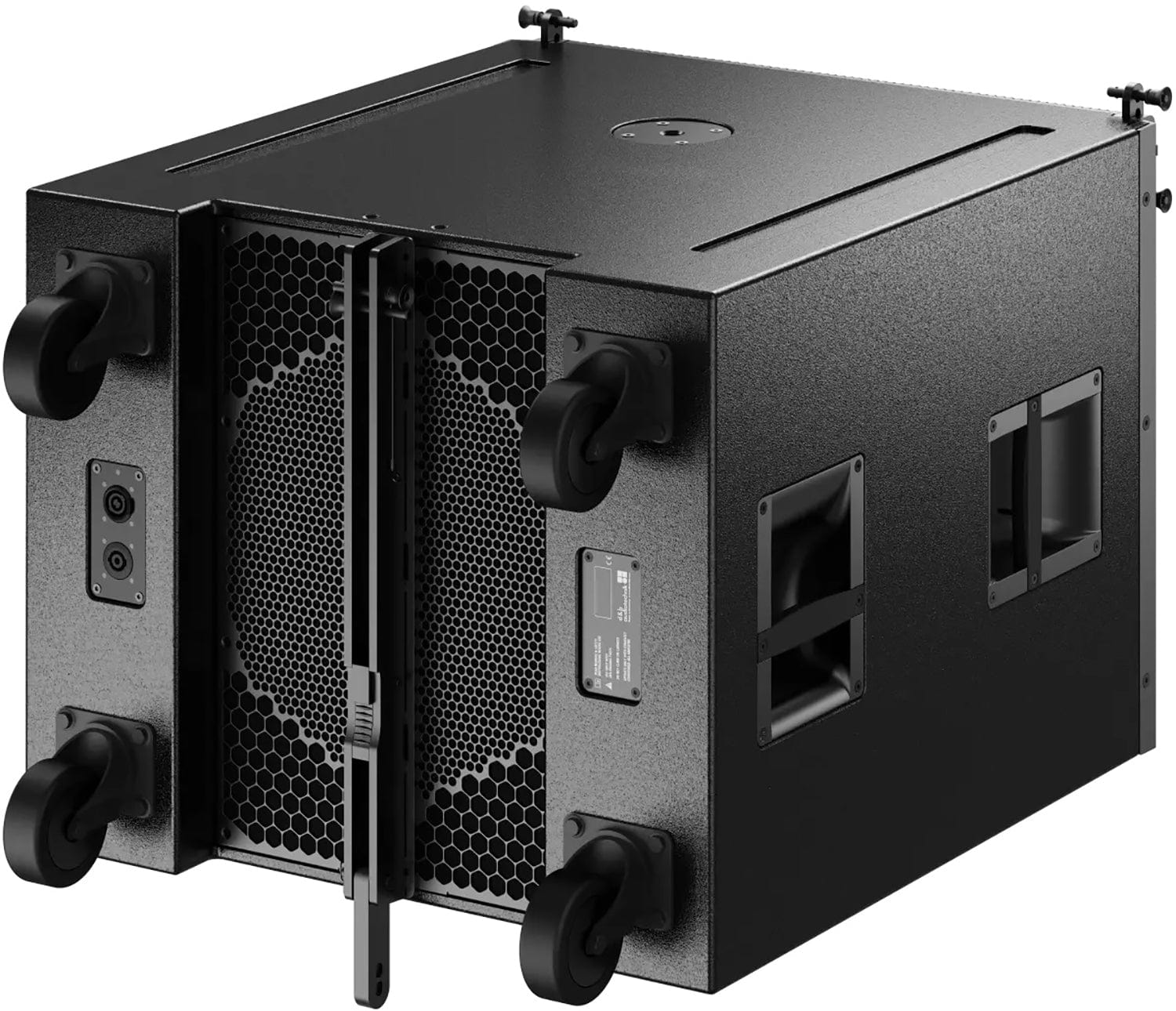

The XSL-SUB is an actively driven, 2-way bass-reflex design with two long excursion neodymium drivers. An 18” driver faces forward, and a 12” driver radiates to the rear. They operate in separate bass-reflex chambers and are driven by independent amplifier channels. Two XSL-SUBs can be linked to a pair of D40 amplifier channels.
The frequency response extends from 37 Hz to 110 Hz (35 Hz to 85 Hz in INFRA mode). The cabinets are built to last and offer great performance.
Specifications:
- System data:
- Max. sound pressure with D40/D80/40D: 137 dB
- Frequency response (-5 dB standard): 37 Hz - 110 Hz
- Frequency response (–5 dB INFRA mode): 35 Hz - 85 Hz
- Cabinets per D40/D80/40D: 4
- Loudspeaker data:
- Nominal impedance front/rear: 8/16 ohms
- Power handling capacity front (RMS/peak 10 ms): 700/1500 W
- Power handling capacity rear (RMS/peak 10 ms): 400/800 W
- Splay angle settings: 0° and 2.5°
- Components:
- 1 x 18' front LF driver
- 1x 12' rear LF driver
- Connections: NLT4 F/M
- Dimensions / weight:
- Dimensions (H x W x D:): 565 x 700 x 7732 / 898 mm (22.2 x 27.6 x 30.42 / 35.4')
- Weight: 66 kg (146 lb)
The D&B Audiotechnik Z0774.000 XSL-SUB is a powerful subwoofer designed for the XSL System. It's great for musicians, DJs, and audio enthusiasts looking to enhance their sound setup. Use it in concerts, clubs, or home audio setups. With its cardioid design, it reduces unwanted sound and provides accurate low-frequency reproduction. The subwoofer is made of marine plywood and has a durable finish. It weighs 66 kg (146 lb) and has dimensions of 565 x 700 x 7732 / 898 mm (22.2 x 27.6 x 30.42 / 35.4').
