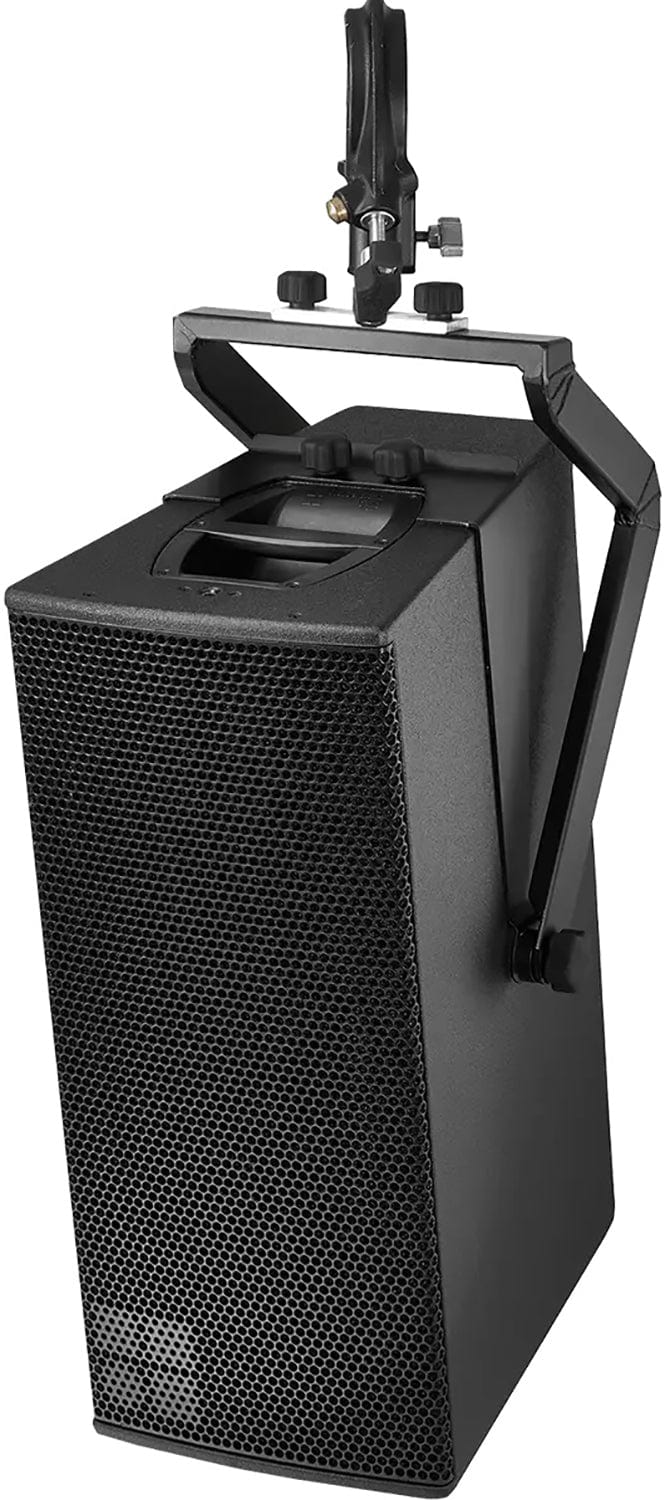

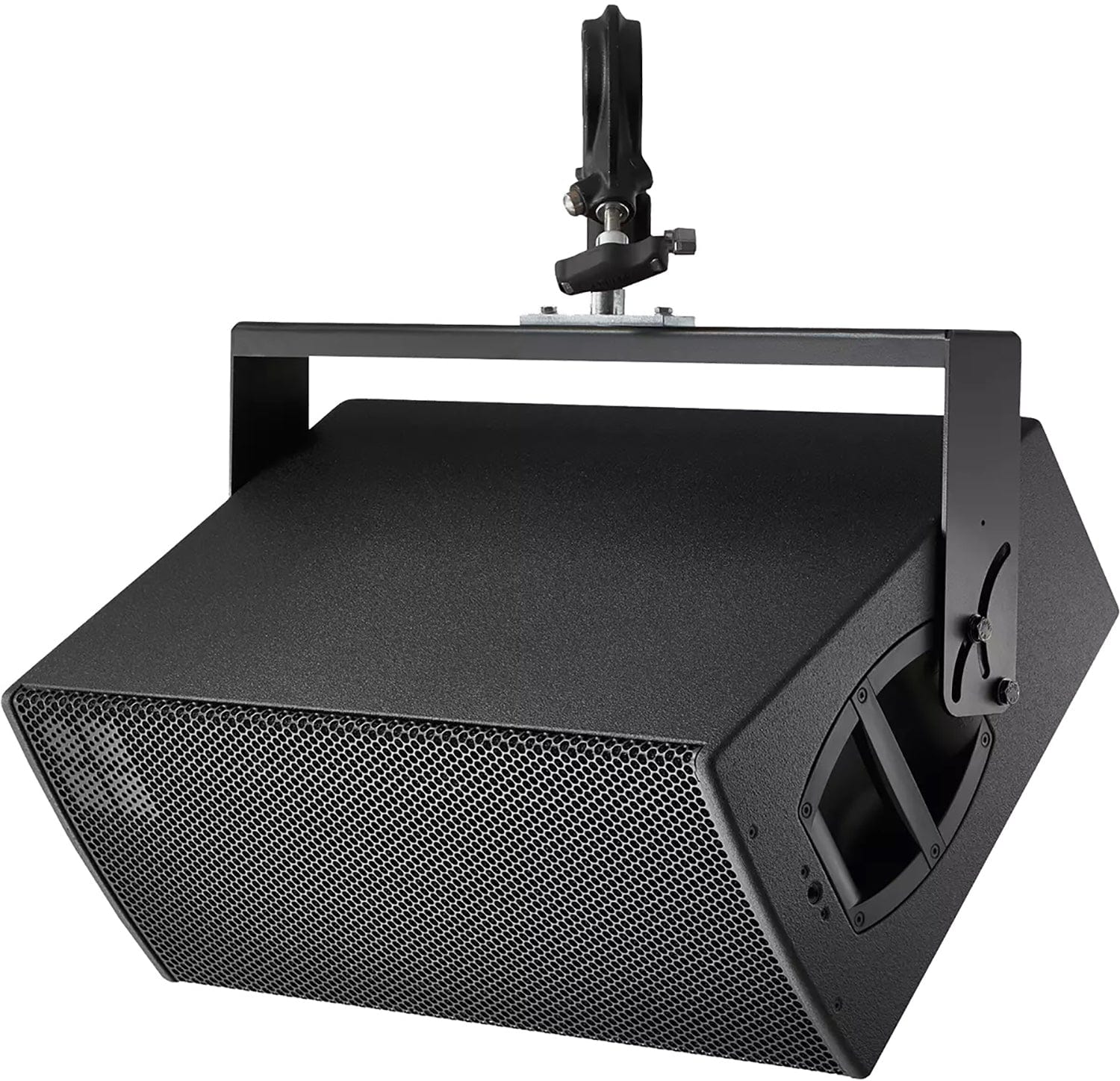

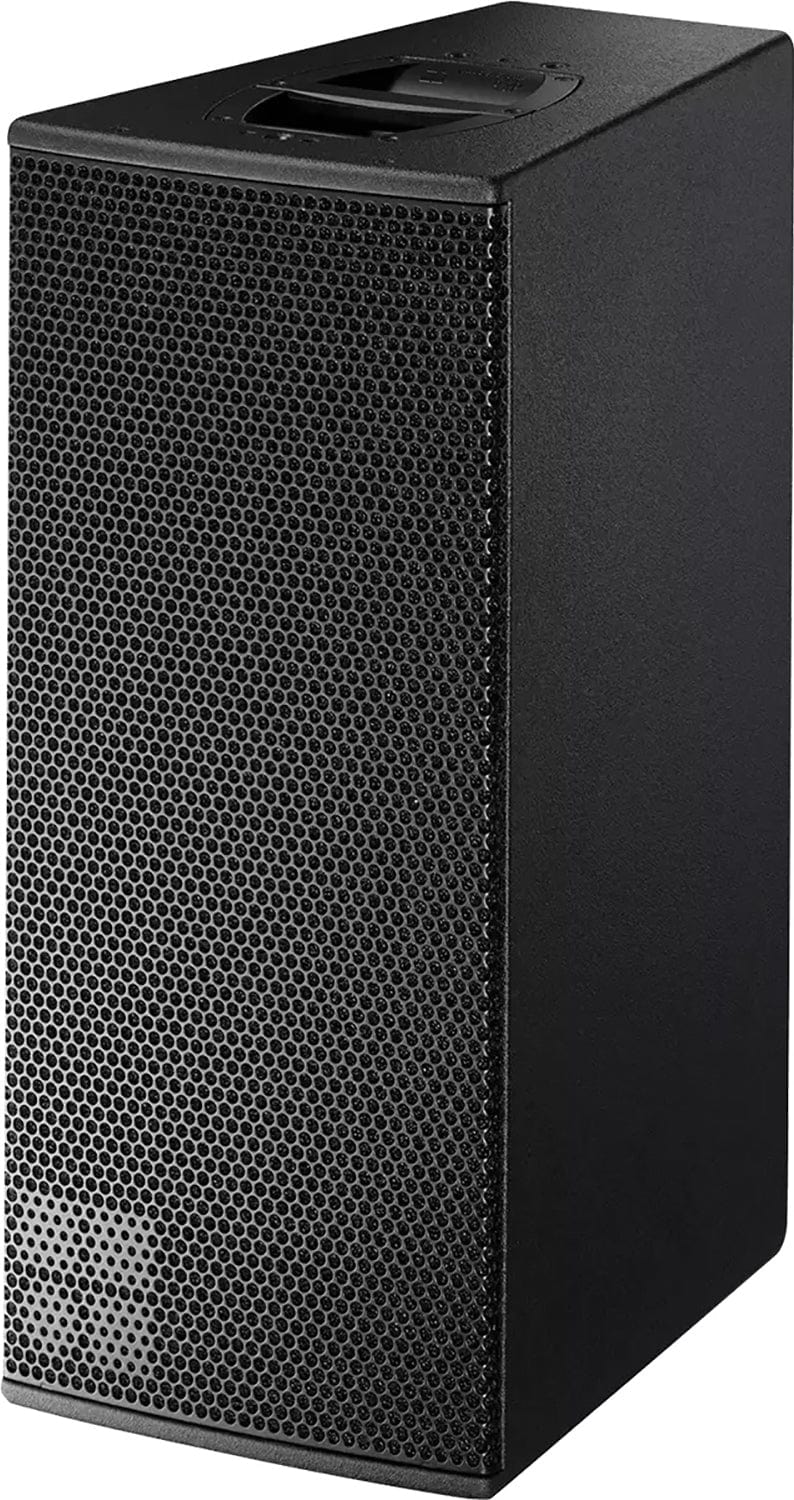

D&B Audiotechnik Z0705.001 V10P High-Performance Loudspeaker with NL4 Speakon Connection
• Exceptional Vocal Performance: The innovative horn design for the centrally mounted 8° MF driver delivers remarkable sensitivity, ensuring outstanding vocal clarity. • Extended LF Output: Advanced bass-reflex and venting design provides extended low-frequency output with full bandwidth capabilities. • Versatile Deployment: Offers a wide range of deployment possibilities, whether used as a stand-alone full range system or combined with other V-Series elements. The 3-way passive V10P loudspeaker features two 10-inch drivers in a dipole arrangement, a horn loaded 8-inch MF driver, and a 1.4-inch compression driver on a rotatable CD horn. All components are symmetrically arranged around the cabinet's centre axis for perfect symmetrical dispersion. With a dipolar LF driver arrangement, broadband dispersion control is maintained down to about 350 Hz in the same plane. It has 110° horizontal directivity and 40° vertical dispersion, and the horn can be rotated 90°. Constructed from marine plywood with PCP finish, a rigid metal grill, handles, and M10 threaded inserts for rigging.
Features:
- High performance point source loudspeaker
- Compact and powerful performance in a single box
- 3-way passive design with 2 x 10' LF drivers, 1 x horn loaded 8' MF driver and 1 x 1.4' exit HF driver on a rotatable CD horn
- Extended LF performance from large cabinet volume and port design
- Extended MF performance from high sensitivity mid range horn
- Vi10P installation specific cabinet option
- Outstanding performance/size ratio (SPL) for applications, where smaller line arrays are not first choice
- Impressive throw and even tonality at longer distances
- Highest SPL at lowest distortion
Specifications:
- System data:
- Frequency response (–5 dB standard): 59 Hz - 18 kHz
- Frequency response (–5 dB CUT mode): 100 Hz - 18 kHz
- Max. sound pressure (1 m, free field)1:
- with 30D/D20: 136 dB
- with D80: 139 dB
- Loudspeaker data:
- Nominal impedance: 8 ohms
- Power handling capacity (RMS/peak 10 ms): 500/2000 W
- Nominal dispersion angle (h x v): 110° x 40°
- Components:
- 2 x 10' driver with neodymium magnet
- 1 x 8' driver with neodymium magnet
- 1 x 1.4' exit compression driver
- passive crossover network
- Connections:
- 2 x NLT4 F/M
- optional 2 x NL4 or 2 x EP5
- Weight: 33 kg (75 lb)

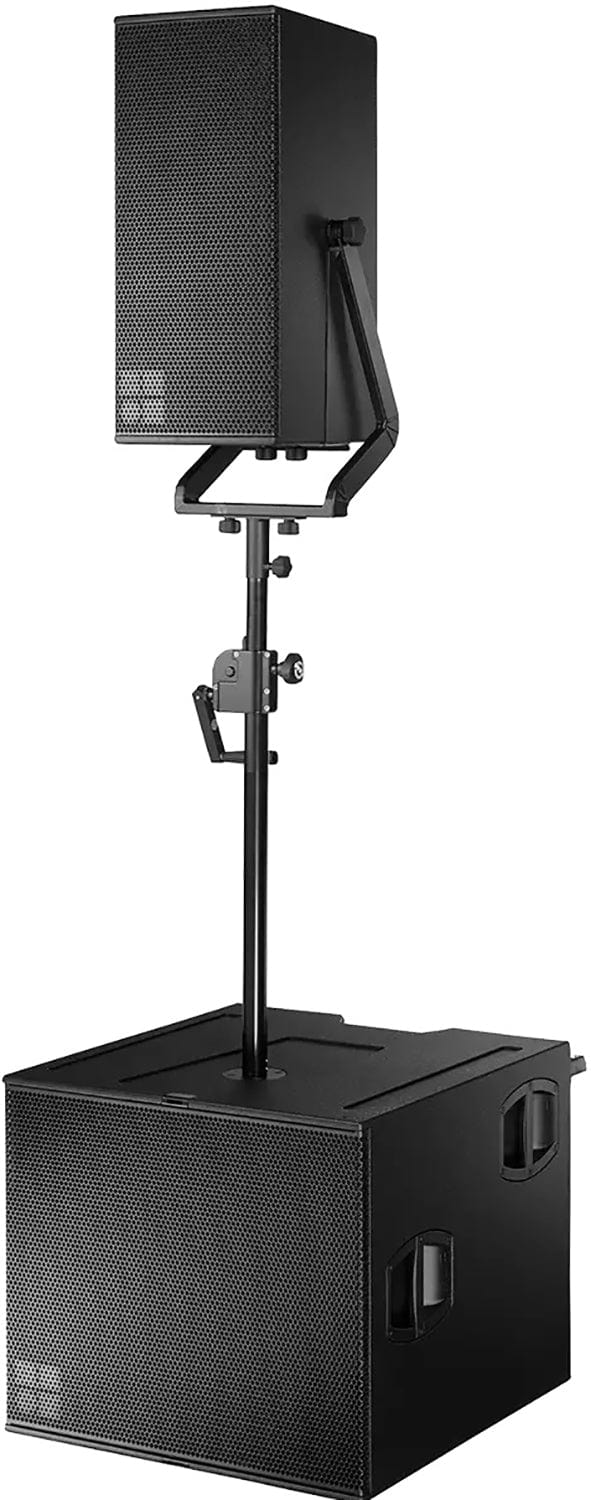

The D&B Audiotechnik Z0705.001 V10P is a high-performance loudspeaker perfect for various sound reinforcement needs. Ideal for event organizers, venues, and audio professionals. It has a frequency response of 59 Hz - 18 kHz (–5 dB standard) and 100 Hz - 18 kHz (–5 dB CUT mode). Max sound pressure at 1 m free field is 136 dB with 30D/D20 and 139 dB with D80. Nominal impedance is 8 ohms, power handling capacity is 500/2000 W (RMS/peak 10 ms), and nominal dispersion angle is 110° x 40°. Weighs 33 kg (75 lb). Can be used as a stand-alone full range system or combined with other V-Series elements for versatile deployment.
