D&B Audiotechnik Z0704.002 V7P Loudspeaker with NLT4 F/M Connections

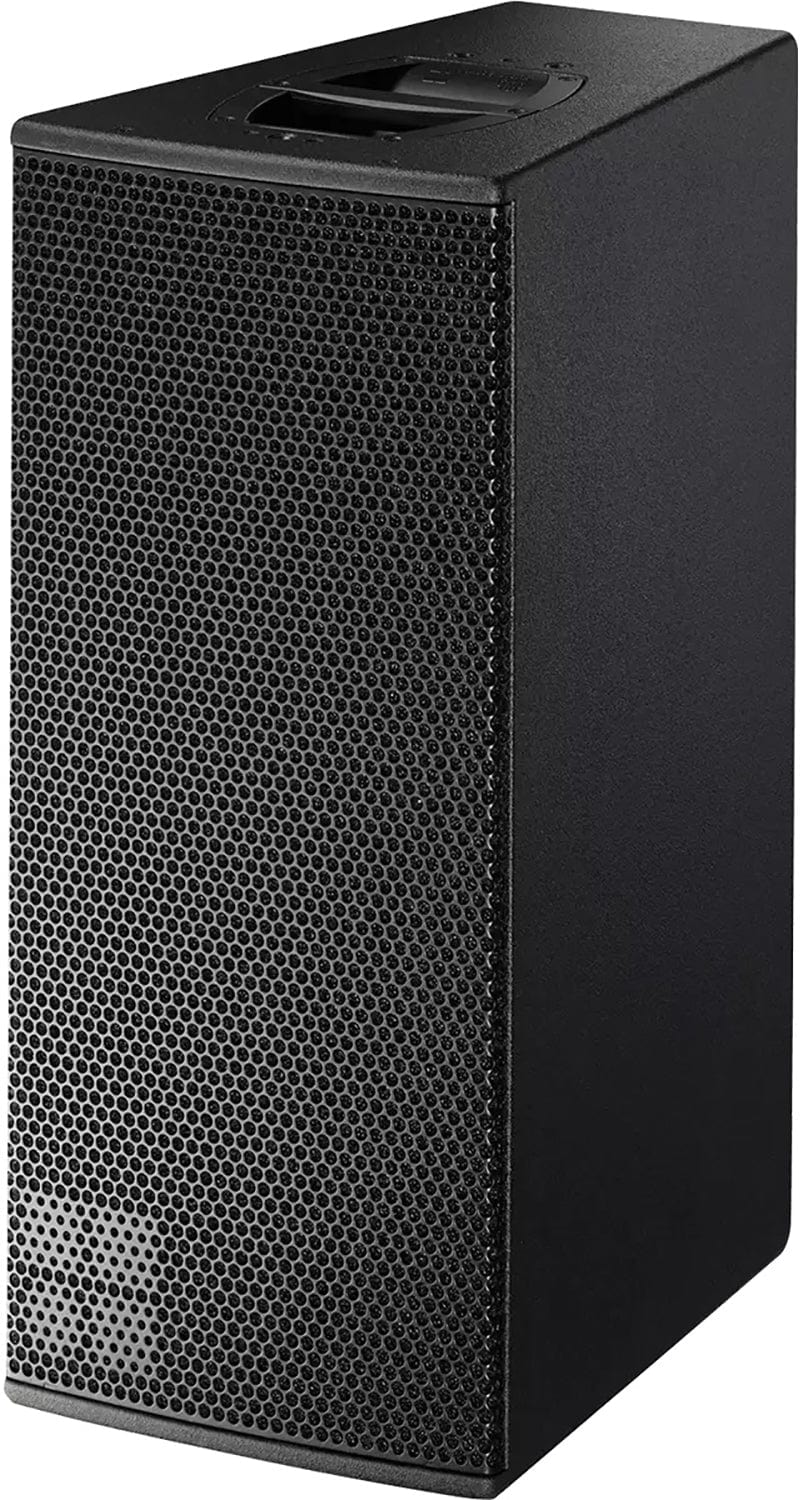

D&B Audiotechnik V7P High-Performance 3-Way Passive Loudspeaker

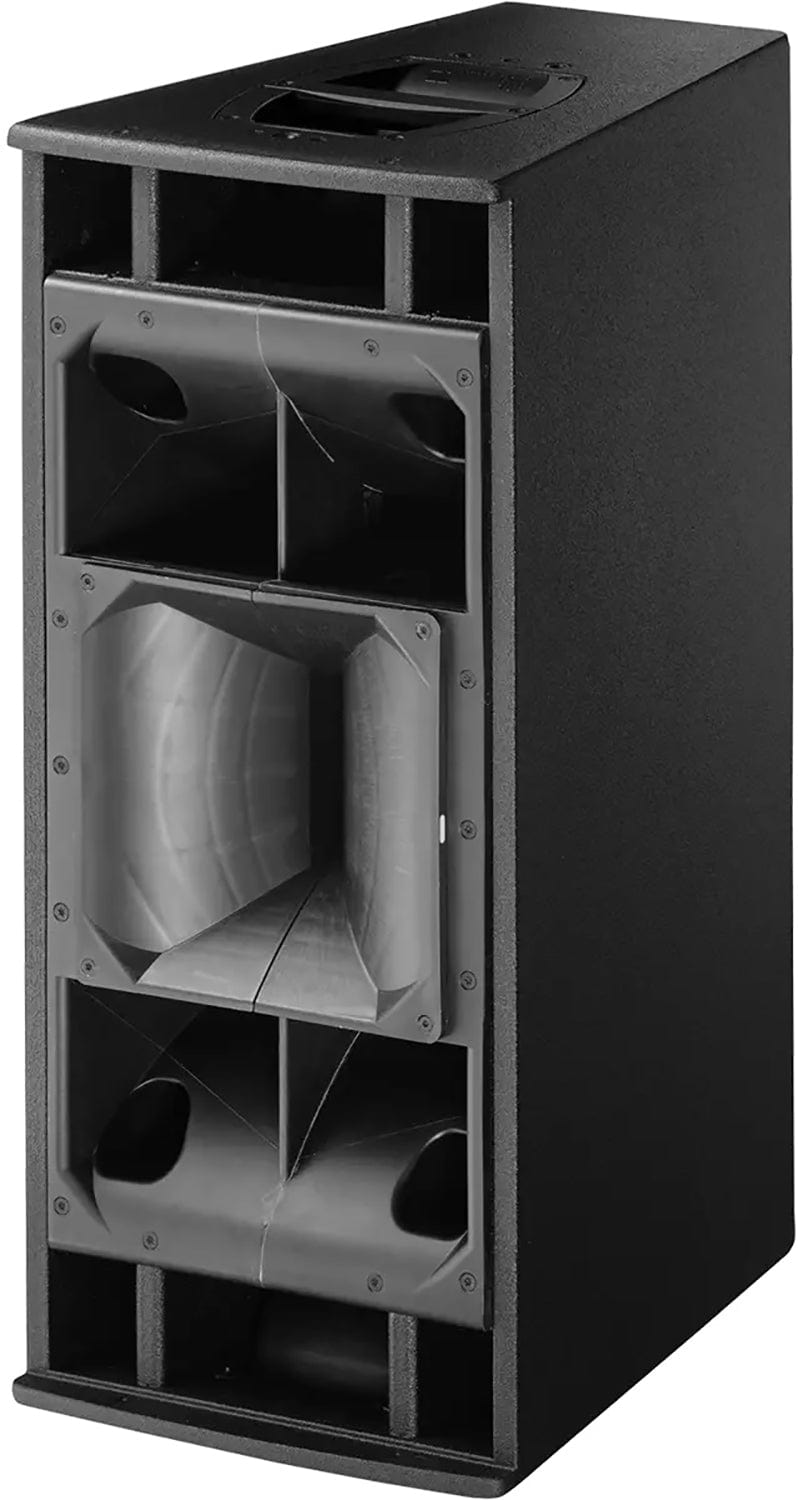

• Exceptional Vocal Range: The innovative horn design for the centrally mounted 8° MF driver delivers remarkable sensitivity, ensuring outstanding performance in the vocal range.
• Extended LF Output: An advanced bass-reflex and venting design provides full bandwidth capabilities and an extended LF output.

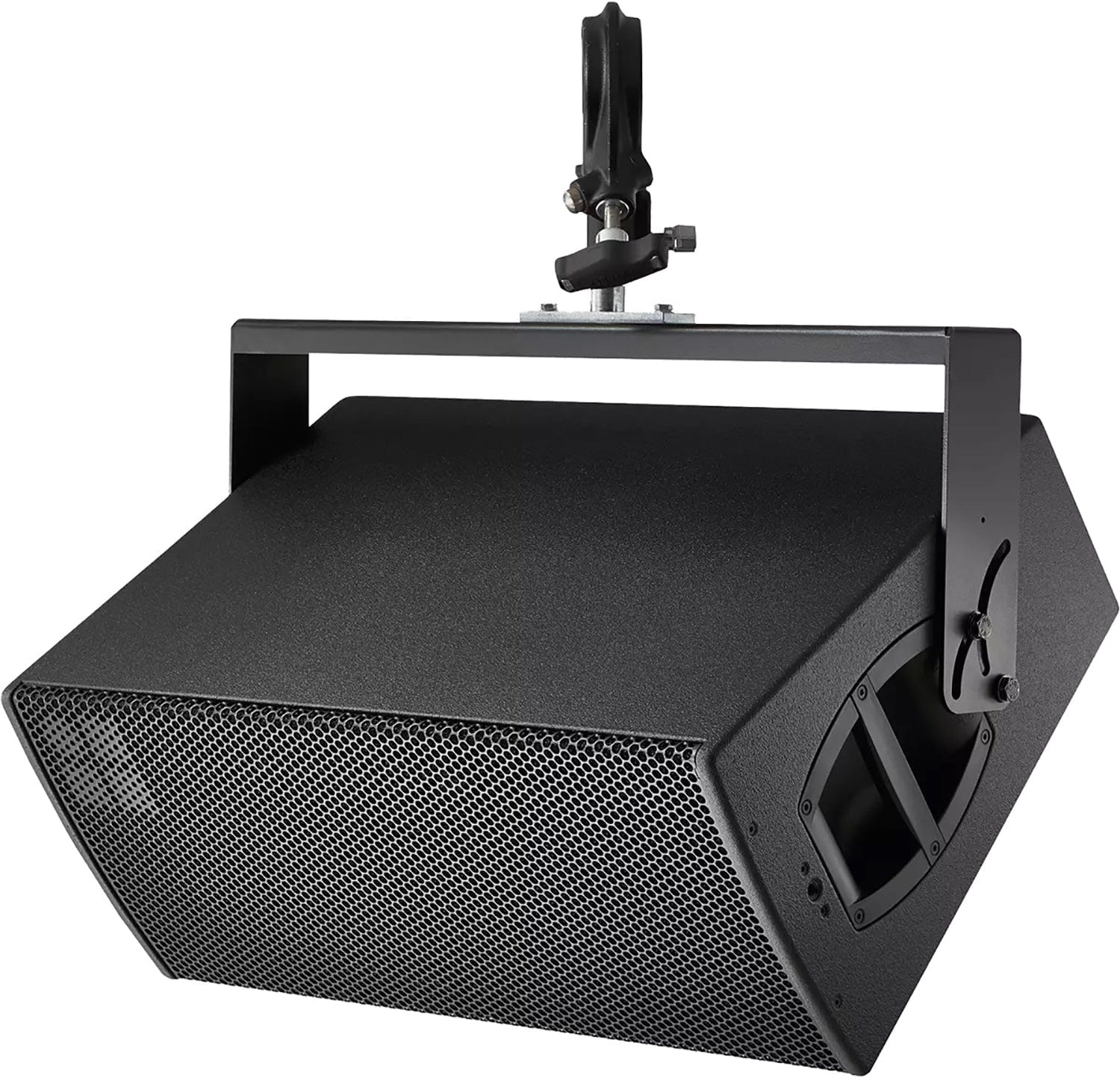

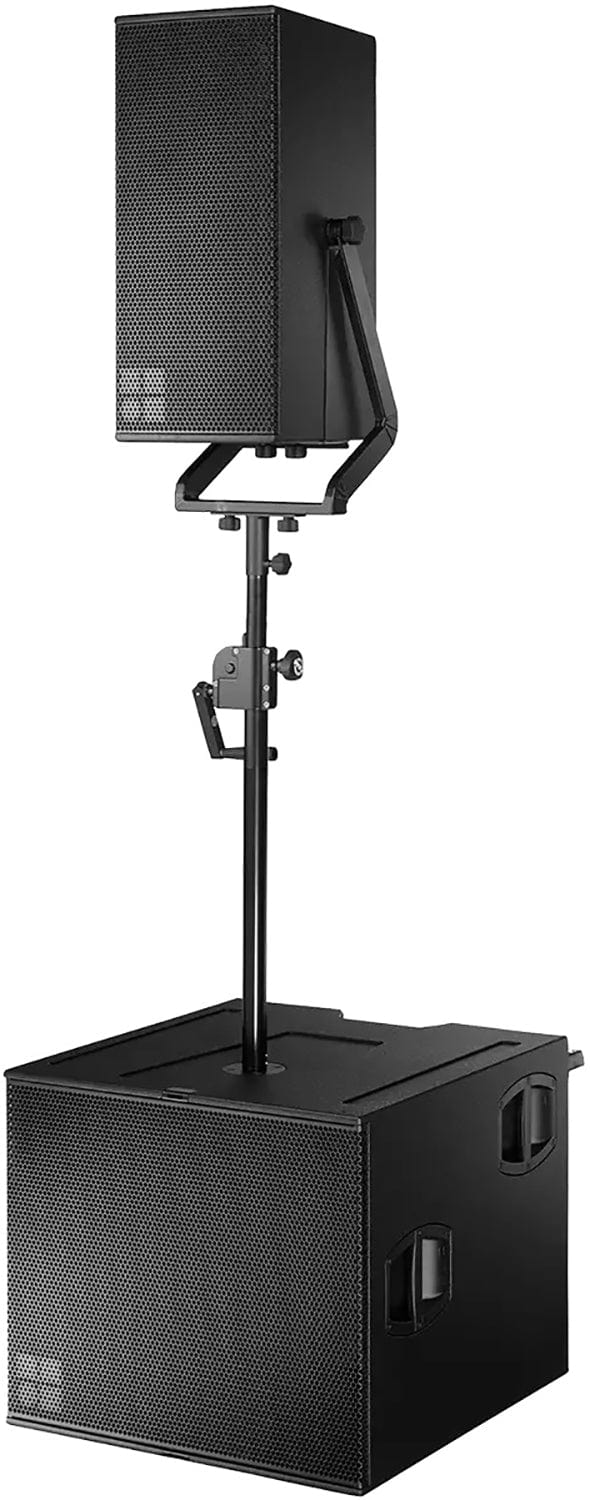

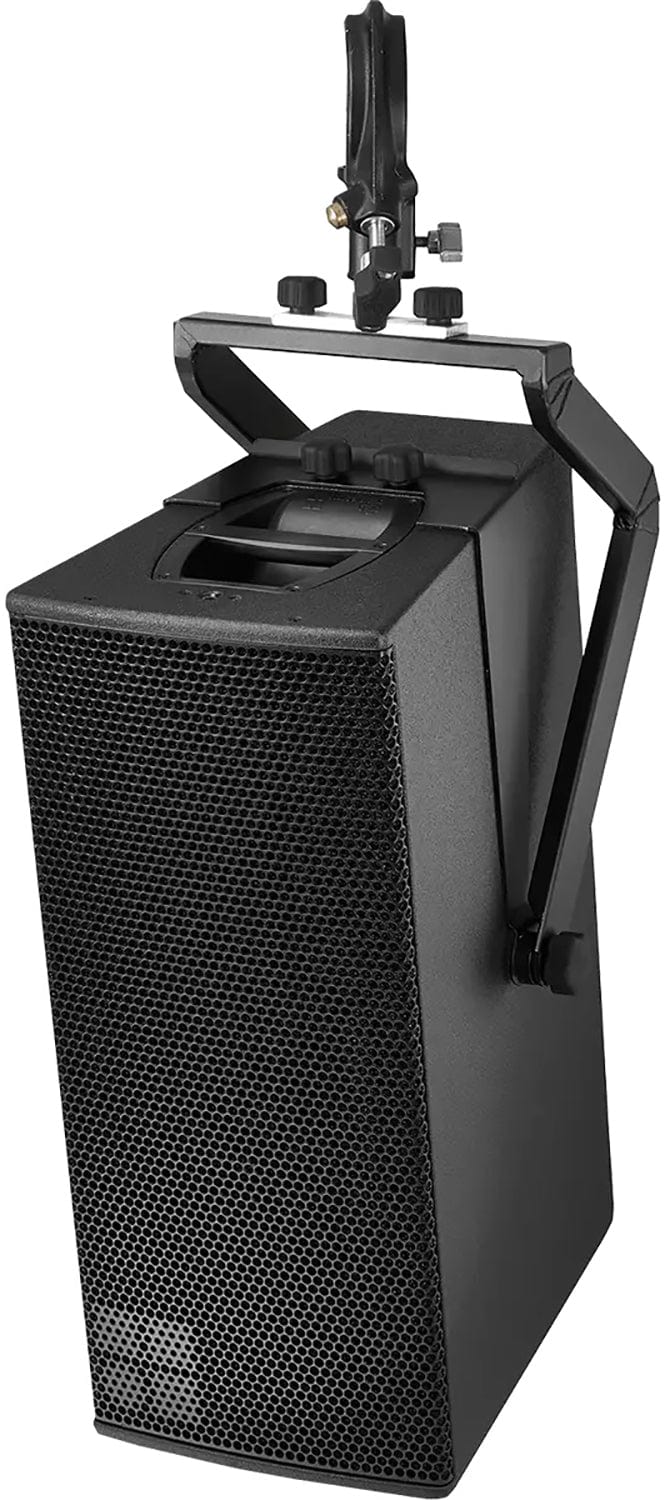

• Versatile Deployment: The V7P offers a wide range of deployment options, whether used as a stand-alone full range system or combined with other V-Series elements. It features a 75° horizontal directivity and 40° vertical dispersion, and the horn can be rotated 90° for horizontal orientation. The loudspeaker cabinet is made of marine plywood with a PCP finish for impact and weather protection, and is protected by a rigid metal grill. It also has handles and M10 threaded inserts for easy rigging.

Specifications:

• System data:
  • Frequency response (-5 dB standard): 59 Hz - 18 kHz
  • Frequency response (-5 dB CUT mode): 100 Hz - 18 kHz
  • Max. sound pressure:
    • with D20/30D: 137 dB
    • with D40/D80/40D: 140 dB
  • Cabinets per amplifier channel: 2
• Loudspeaker data:
  • Configuration: High performance 3-way passive point source loudspeaker
  • Nominal impedance: 8 Ω
  • Power handling capacity (RMS/peak 10 ms): 500/2000 W
  • Nominal dispersion angle (h x v): 75° x 40°
  • Components:
    • 2 x 10' LF driver with neodymium magnet
    • 1 x 8' MF driver with neodymium magnet
    • 1 x 1.4” exit compression driver
    • Passive crossover network
  • Connections: 2 x NLT4 F/M
• Dimensions / weight:
  • Dimensions (H x W x D): 700 x 308 x 466 mm (27.5 x 12 x 18.3')
  • Weight: 33 kg (75 lb)

The D&B Audiotechnik V7P is a high-performance 3-way passive loudspeaker perfect for various audio setups. It's great for musicians, event organizers, and sound engineers. With dimensions of 700 x 308 x 466 mm and a weight of 33 kg, it's easy to handle and install. Use it as a stand-alone full range system or combine it with other V-Series elements for a customized audio solution.
