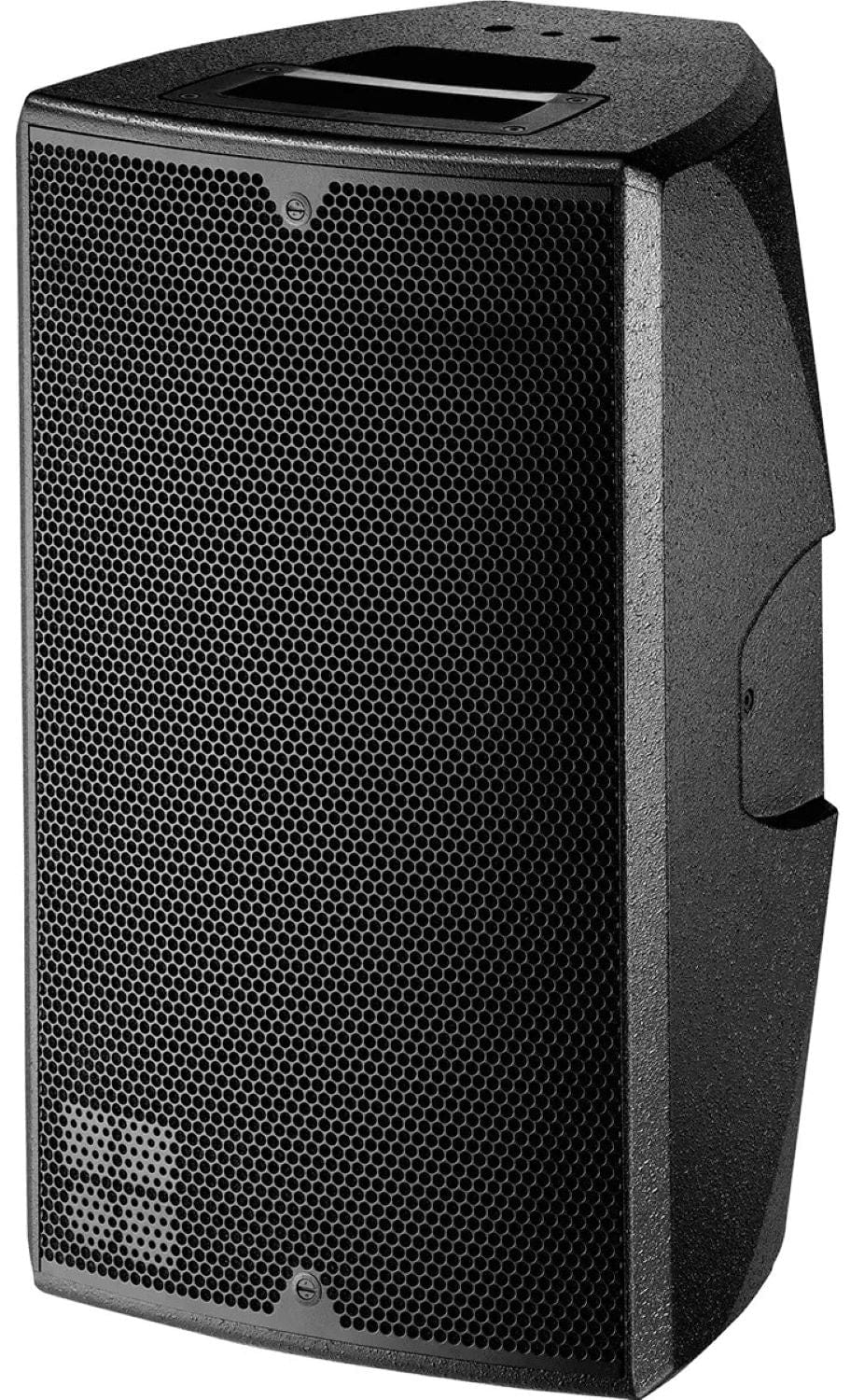

D&B Audiotechnik Z0601.002 E12 12-Inch NLT4F/M Passive Loudspeaker

D&B Audiotechnik Z0601.002 E12 12-Inch High-Performance Passive Loudspeaker

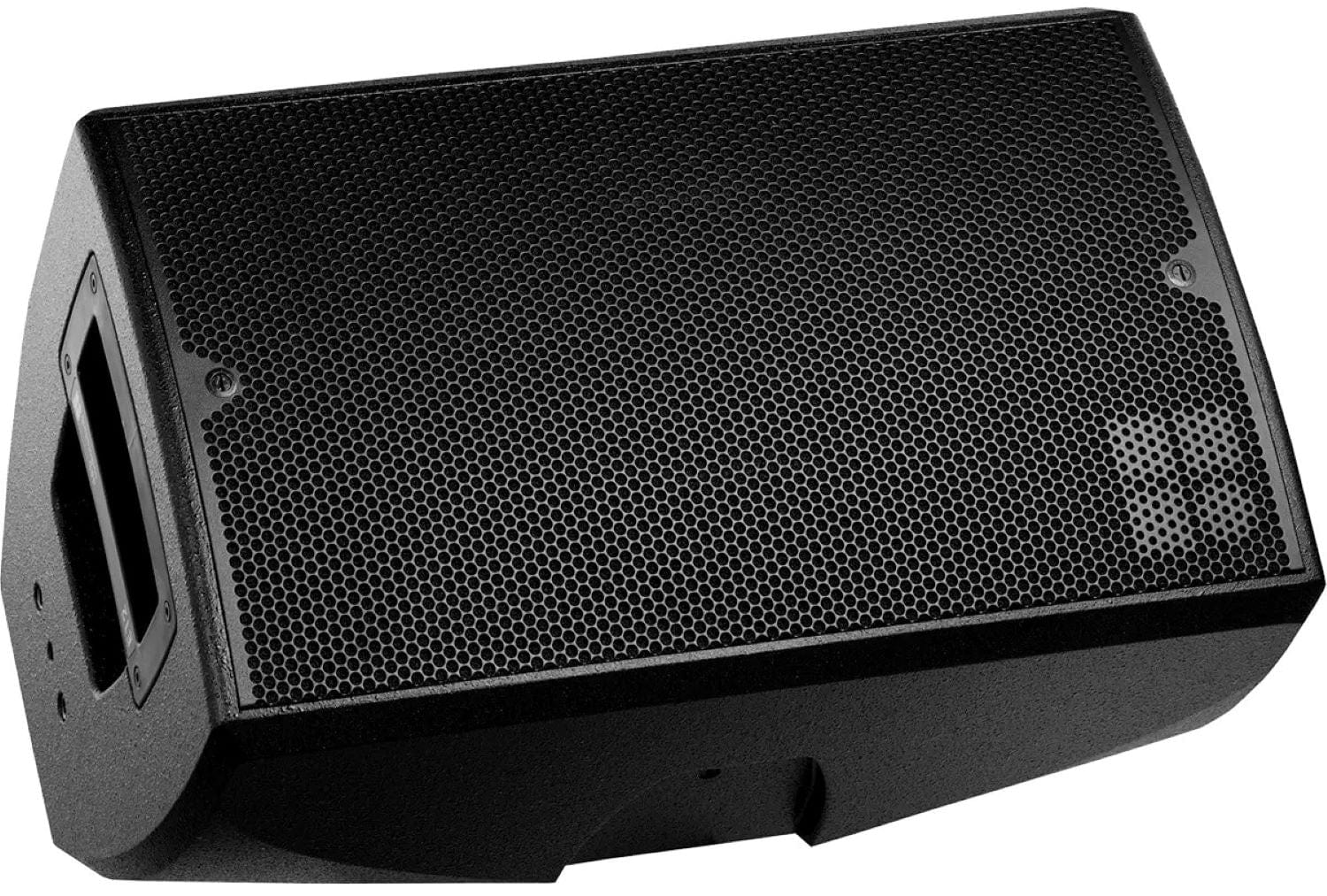

The E12 and E12-D are amazing high performance 2-way multipurpose loudspeakers! They're perfect for anyone looking for top-notch sound quality. Whether you're hosting a live event, setting up a music venue, or just need great speakers for your home entertainment. • Integrated coaxial driver for exceptional sound. • Versatile use for speech and music, either stand-alone or as part of a larger system. • Weather Resistant option with IP54 rating for outdoor use. With these features, you'll be able to enjoy high-quality sound in any situation. The multifaceted shape of the enclosure allows use either in an upright or horizontal orientation as well as deployment as a stage monitor. The E12 has an 80° x 50° dispersion pattern (h x v), while the E12-D has a wider 110° x 50° pattern. The horns in both loudspeakers are easily rotatable through 90° providing 50° x 80° or 50° x 110° dispersion patterns. The E12 and E12-D cabinet is constructed from polyurethane integral hard foam with an impact resistant paint finish incorporating handles and a hidden socket to accept loudspeaker stands. The loudspeaker cabinet is also available in Special Colour (SC) and Weather Resistant (WR) options. The Weather Resistant option provides an IP54 rating, and enables operation of loudspeakers in changing ambient conditions. Both options are supplied with metal plates in the specified colour covering the handle recesses and loudspeaker stand socket.

Features:

• Components 12″/1.3″
• Dispersion 80° x 50° rotatable
• SPLmax 134 dB
• Weight 16 kg / 35 lb

Specifications:

• System data:
  • Frequency response (–5 dB standard): 50 Hz – 18 kHz
  • Frequency response (–5 dB CUT mode): 100 Hz – 18 kHz
  • Max. sound pressure (1 m, free field): E12/E12-D with D6: 131/130 dB, E12/E12-D with D12: 134/133 dB
  • Input level (100 dB-SPL/1 m): –17 dBu
• Loudspeaker data:
  • Nominal impedance: 8 ohms
  • Power handling capacity (RMS/peak 10 ms): 300/1600 W
  • Nominal dispersion angle (hor. x vert.): 80° x 50°, 110° x 50°
  • Components:
    • 12' driver with neodymium magnet
    • coaxial 1.3' exit compression driver with 3¡° coil and rotatable CD horn
    • Passive crossover network

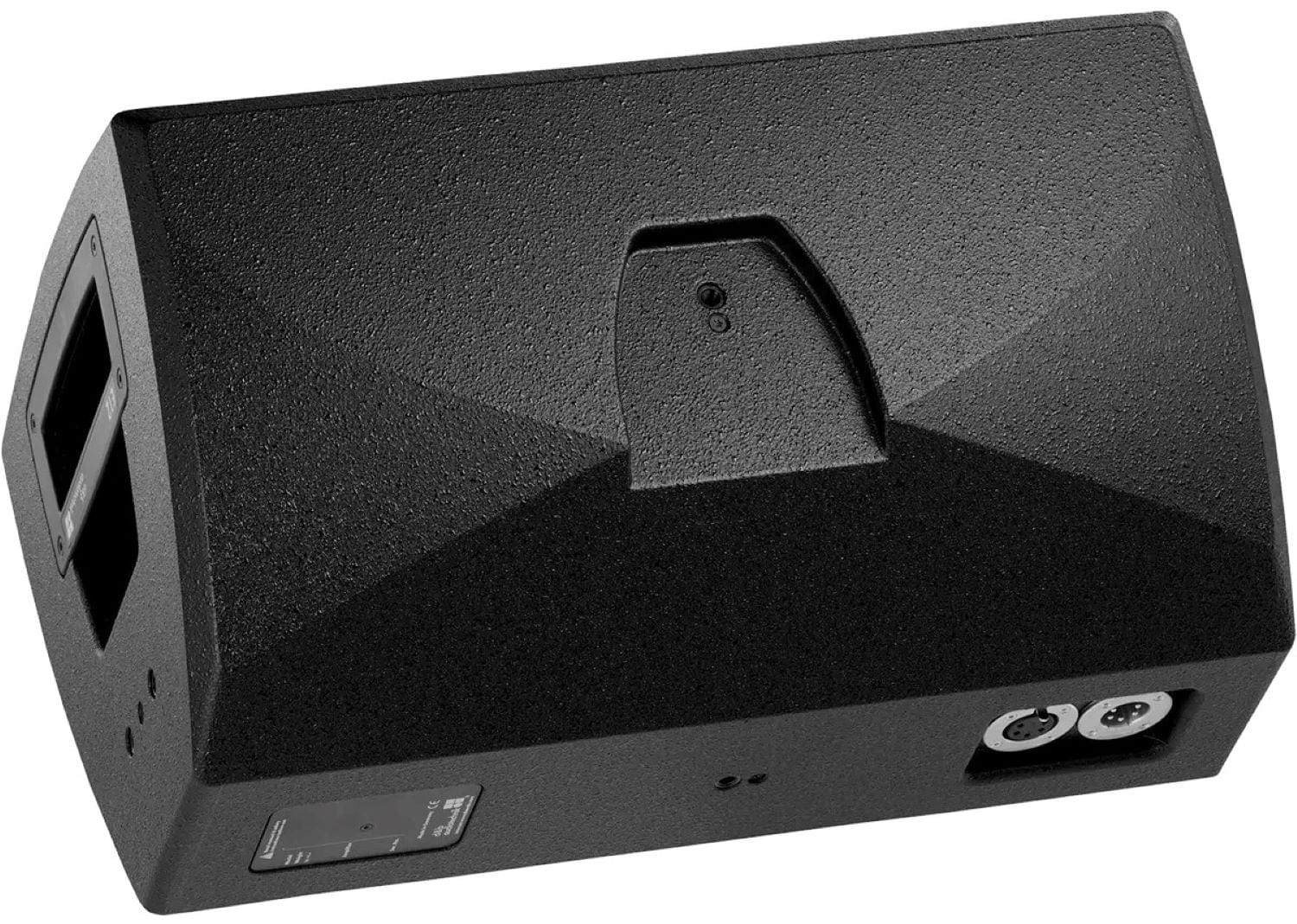

  • Connections:
    • 2 x NLT4 F/M
  • Weight: 16 kg (35 lb)
