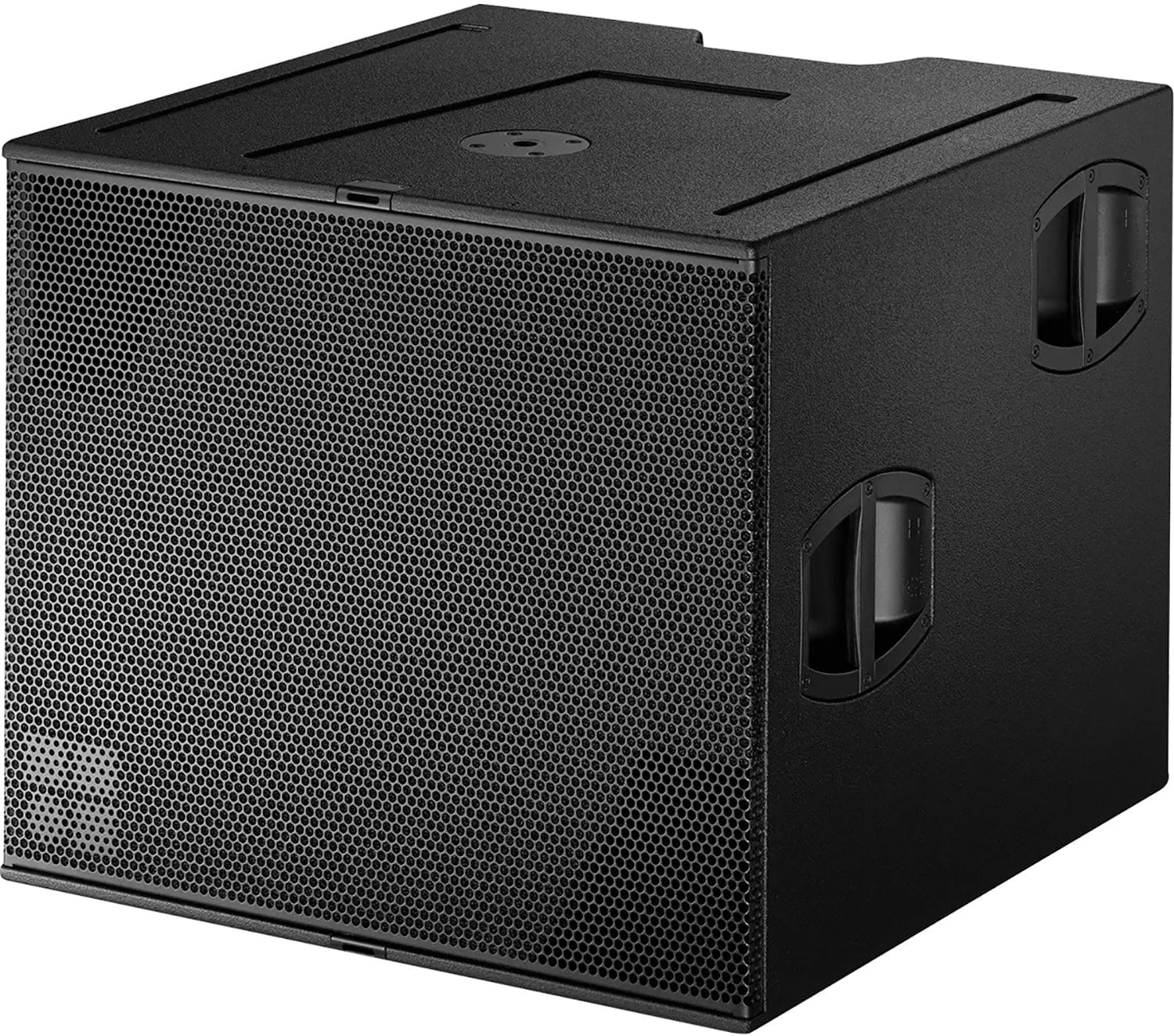

D&B Audiotechnik Z0519.002 V-GSUB Subwoofer with NLT4 F/M Connections
V-GSUB！，，V-SUB，
：
• ，，
• ，，PCP，
• ，2NLT4 F/M
，，，606 x 700 x 728 / 830 mm ，61 kg ，，！
Specifications:
- System data:
- Frequency response (-5 dB standard): 37 - 115 Hz
- Frequency response (-5 dB 100 Hz mode): 37 - 95 Hz
- Max. sound pressure:
- with D20/30D: 133 dB
- with D40/D80/40D2: 137 dB
- Cabinets per amplifier channel: 2
- Loudspeaker data:
- Configuration: High performance cardioid subwoofer
- Nominal impedance: 8 Ω
- Power handling capacity (RMS/peak 10 ms): 800/3200 W
- Splay angle settings: 0° and 2.5°
- Components:
- 1 x 18' driver
- 1 x 12' driver
- Connections: 2 x NLT4 F/M
- Dimensions / weight:
- Dimensions (H x W x D): 606 x 700 x 728 / 830 mm (23.8 x 27.5 x 28.63 / 32.6')
- Weight: 61 kg (135 lb)
D&B Audiotechnik Z0519.002 V-GSUB606 x 700 x 728 / 830 mm ，61 kg ，，，，，PCP，2NLT4 F/M
