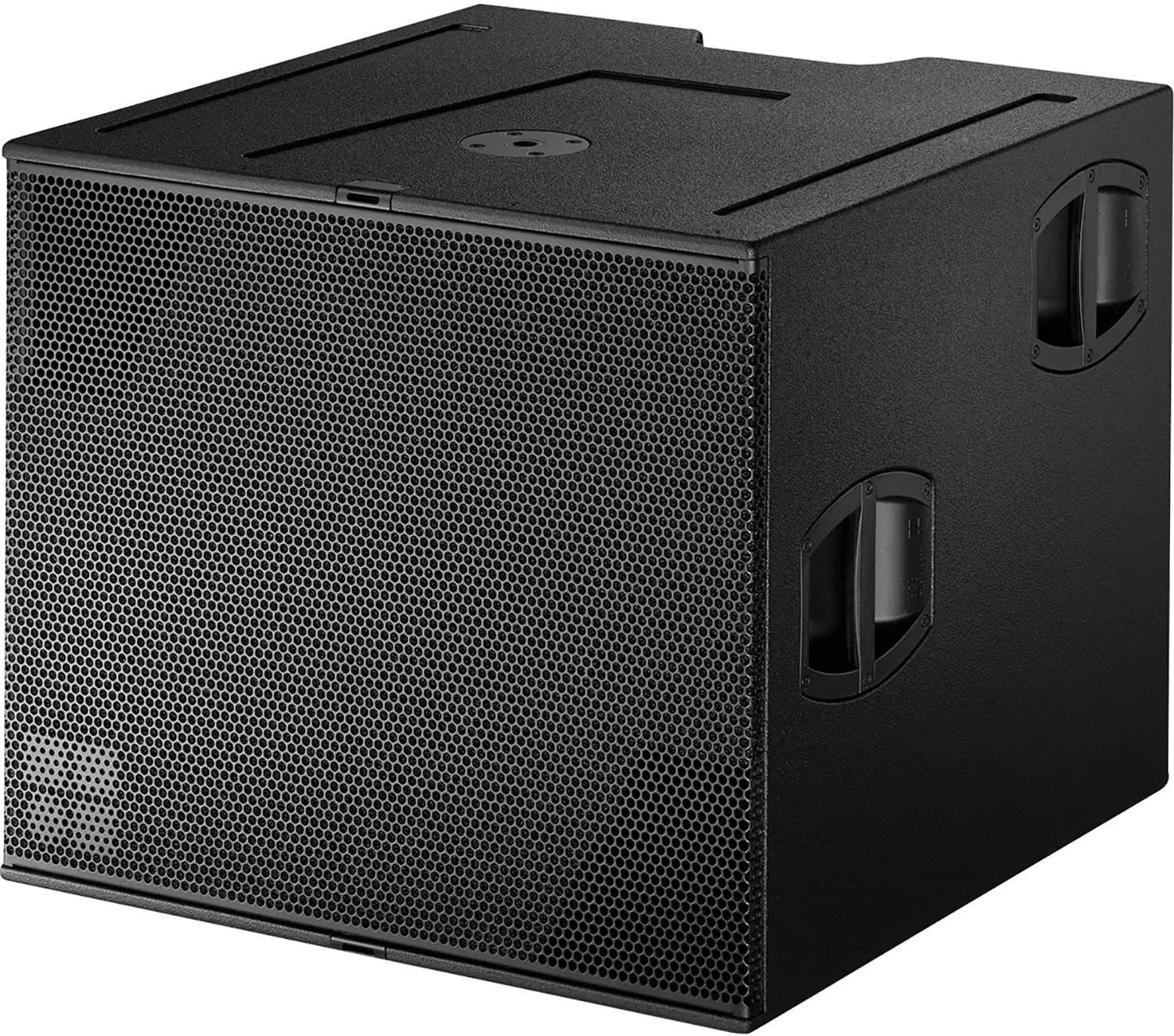

D&B Audiotechnik Z0519.001 V-GSUB Subwoofer with NL4 Connections

D&B Audiotechnik Z0519.001 V-GSUB Subwoofer with NL4 Connections

V-GSUB，！，V-SUB，！ • ：，18，12， • ：，，， • ：V7P/V10P，；；，PCP（），V-GSUB，M20

Specifications:

• System data:
  • Frequency response (-5 dB standard): 37 - 115 Hz
  • Frequency response (-5 dB 100 Hz mode): 37 - 95 Hz
  • Max. sound pressure:
    • with D20/30D: 133 dB
    • with D40/D80/40D2: 137 dB
  • Cabinets per amplifier channel: 2
• Loudspeaker data:
  • Configuration: High performance cardioid subwoofer
  • Nominal impedance: 8 Ω
  • Power handling capacity (RMS/peak 10 ms): 800/3200 W
  • Splay angle settings: 0° and 2.5°
  • Components:
    • 1 x 18' driver
    • 1 x 12' driver
  • Connections: 2 x NL4
• Dimensions / weight:
  • Dimensions (H x W x D): 606 x 700 x 728 / 830 mm (23.8 x 27.5 x 28.63 / 32.6')
  • Weight: 61 kg (135 lb)
