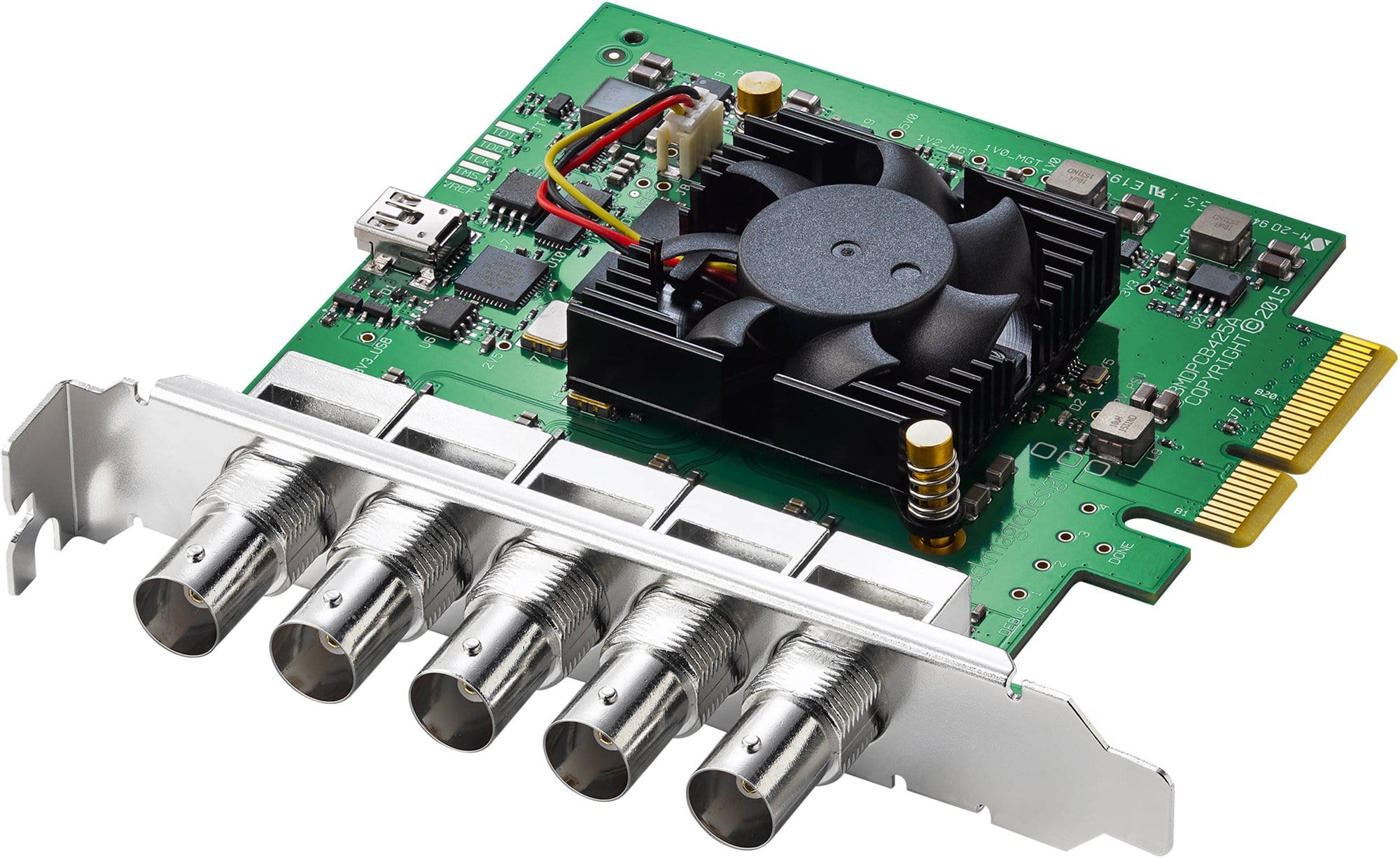

Powerful Blackmagic DeckLink Duo 2 Video I/O Card for Pro Workflows
• Four bi-directional SDI interfaces for maximum versatility!
• Configure each SDI interface as input or output for various setups!
• Sync with other studio equipment using the reference input!
The Blackmagic Design DeckLink Duo 2 is a must-have for professional video workflows. It offers four bi-directional SDI interfaces, allowing you to customize your setup according to your needs. Whether you need a media play-out system, a multi-screen digital signage server, a live keyer, or a real-time multi-channel capture system, this card has got you covered. With its flexible configuration options, you can easily adapt it to fit your specific workflow of the moment. The reference input ensures seamless syncing with other studio equipment.
Specifications:
- Host Connection: PCIe x4 (PCIe 2.0)
- Input:
- Video Input Connectors: 4 x BNC (12G-SDI) Female
- Input Video Format:
- SDI (8/10/12-Bit 4:4:4/4:2:2 RGB, YUV):
- 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
- 1080PsF: 23.98/24/25/29.97/30 fps
- 1080i: 50/59.94/60 fps
- 720p: 50/59.94/60 fps
- PAL: 50 fps
- NTSC: 60 fps
- Audio Input Connectors: None
- Input Audio Format: Analog: 48 kHz / 24-Bit
- Embedded Audio Input: SDI: 16-Channel
- Standards:
- Video Standard Compliance SMPTE 259M/292M/296M/372M/425M
- ITU -R BT.601/BT.656
- Connectivity: Other I/O 1 x BNC Blackburst, Reference, Tri-Level Sync Input
- Hardware:
- OS Compatibility:
- Windows 8.1.10 or Later
- macOS 10.14.15 or Later
- Linux
- Power Consumption: 10 W
- Environmental:
- Operating Temperature: 41 to 104°F / 5 to 40°C
- Storage Temperature: -4 to 113°F / -20 to 45°C
- Operating Humidity: 0 to 90%
- General:
- Certifications: C-Tick, CE, FCC, as per Manufacturer
- Dimensions: 3.7' / 9.4 cm
- Weight: 5.64 oz / 160 g
- Packaging Info:
- Package Weight: 0.54 lbs.
- Box Dimensions (LxWxH): 5.65 x 5.55 x 1.2'
This Blackmagic DeckLink Duo 2 Video I/O Card is perfect for professional video work. It's great for media play-out systems, multi-screen digital signage servers, live keyers, and real-time multi-channel capture systems. It has four bi-directional SDI interfaces that can be configured as input or output. There's also a reference input for syncing with other studio equipment. It works with Windows 8.1, 10 or later, macOS 10.14, 15 or later, and Linux. It measures 3.7' (9.4 cm) and weighs 5.64 oz (160 g). The package weighs 0.54 lbs and the box dimensions are 5.65 x 5.55 x 1.2'.
