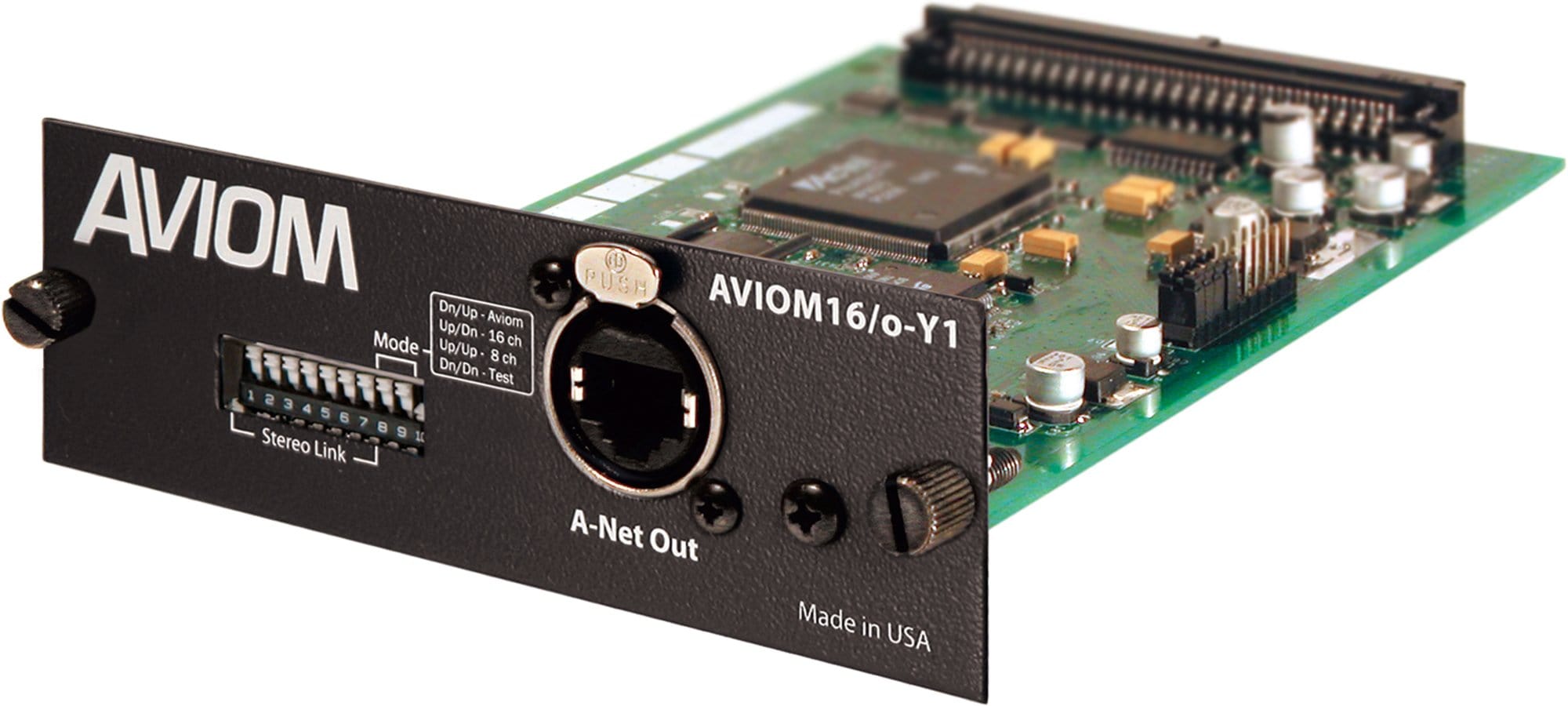

Aviom 16/O-Y1 Yamaha Interface: Your Key to Seamless Audio Connectivity
Are you a musician, sound engineer, or audio enthusiast looking for a reliable and efficient way to connect your Yamaha digital mixer to Aviom's Pro16 Series? Look no further! The Aviom 16/O-Y1 A-Net Card is here to revolutionize your audio setup.
• Direct Digital Interface: Enjoy a direct digital link between your Yamaha mixer and Aviom's Pro16 Series, eliminating the need for analog input modules. This means crystal-clear audio and enhanced performance.
• Customizable Channel Assignment: Assign any combination of channels, direct outputs, aux sends, groups, or sub-mixes from your Yamaha console to the Y1 card, giving you complete control over your monitor mixing or audio distribution system.
• High-Quality Audio Features: With support for sample rates from 44.1kHz to 48kHz, +/-10%, 24-bit digital conversion, and a low latency of <0.880 msec, you can expect nothing but top-notch audio quality.
Features:
- Mini-YGDAI (MY) format, compatible with most Yamaha digital consoles
- One 16-channel Pro16 A-Net output
- Supports sample rates from 44.1kHz to 48kHz, +/-10%
- Assign audio outputs directly from the Yamaha interface
- Channel Link DIP switches for stereo operation
Specifications:
- A-Net Pro16 Output: 16 channels of A-Net digital data; 8 channels on PM1D
- Interface Format: Yamaha mini-YGDAI (MY) Expansion Card
- Maximum Expansion: Limited only by the number of available MY expansion slots in the digital mixer
- Sample Rate: 44.1kHz to 48kHz, +/-10%
- Digital Conversion: 24-bit
- A-Net Output: A-Net Out: 1; EtherCon RJ45 connector

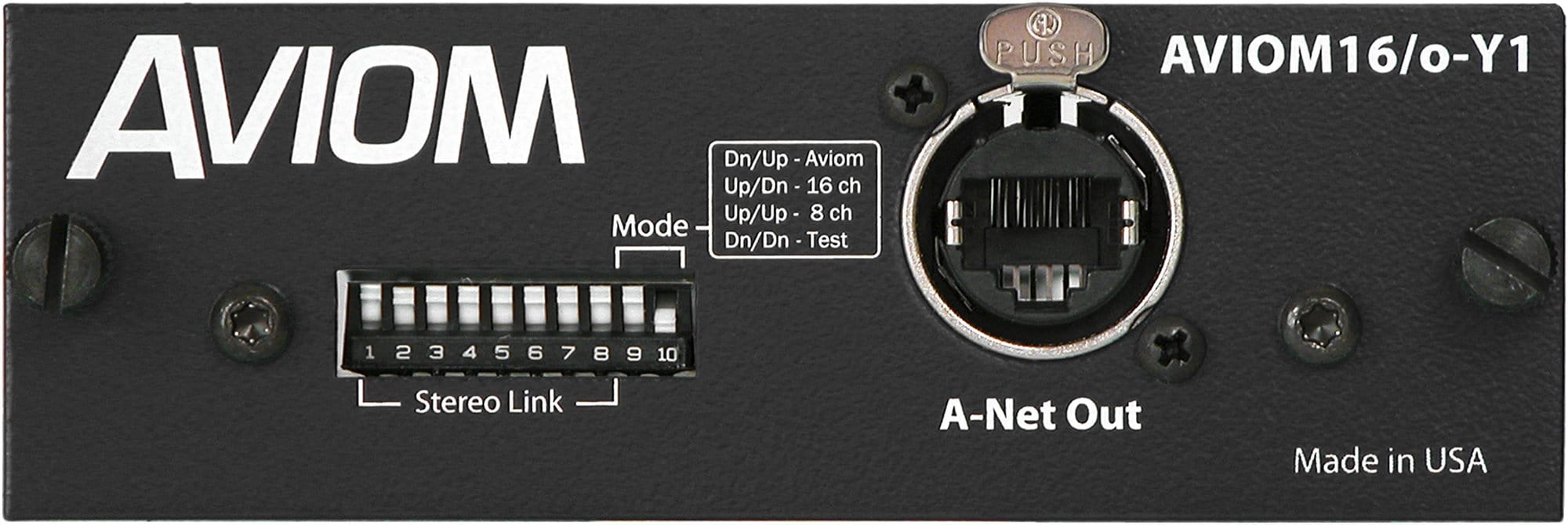

- DIP Switch:
- Switch 1-8: Stereo Link on/off
- Switch 9-10: A-Net mode
- A-Net Modes: 8-channel, 16-channel, Aviom, Test
- Default is switch 9 up, 10 down
- A-Net Pro16:
- A-Net allows 16 channels of audio to be transmitted over one Cat-5e cable
- use unshielded Cat-5e UTP (or better) cable;
- max. length 500 feet (150m) between devices
- Latency: <0.880 msec (measured from analog input to analog output)
- Power Supply: none required; uses Yamaha host device as source of power
- Dimensions: 4.75' (120.7 mm) wide x 6.25' (158.8 mm) deep; 1.5' (38.1 mm) high
- Weight: 0.8 lbs. (0.36 kg)
- Options: SB4 System Bridge; used to combine up to four A-Net streams for transmission over one Cat-5e cable (requires D800 or D800-Dante A-Net Distributor)
The Aviom 16/O-Y1 is a must-have for musicians, sound engineers, and audio enthusiasts. It provides a direct digital interface between Yamaha digital mixer products and Aviom's Pro16 Series, allowing for seamless audio connectivity. With customizable channel assignment and high-quality audio features, you can create a monitor mixing or audio distribution system that meets your specific needs. The card is compatible with most Yamaha digital consoles and offers a range of features and specifications to ensure optimal performance. It has a compact design, weighing only 0.8 lbs. (0.36 kg), and dimensions of 4.75' (120.7 mm) wide x 6.25' (158.8 mm) deep; 1.5' (38.1 mm) high. Power supply is not required as it uses the Yamaha host device as the source of power.
