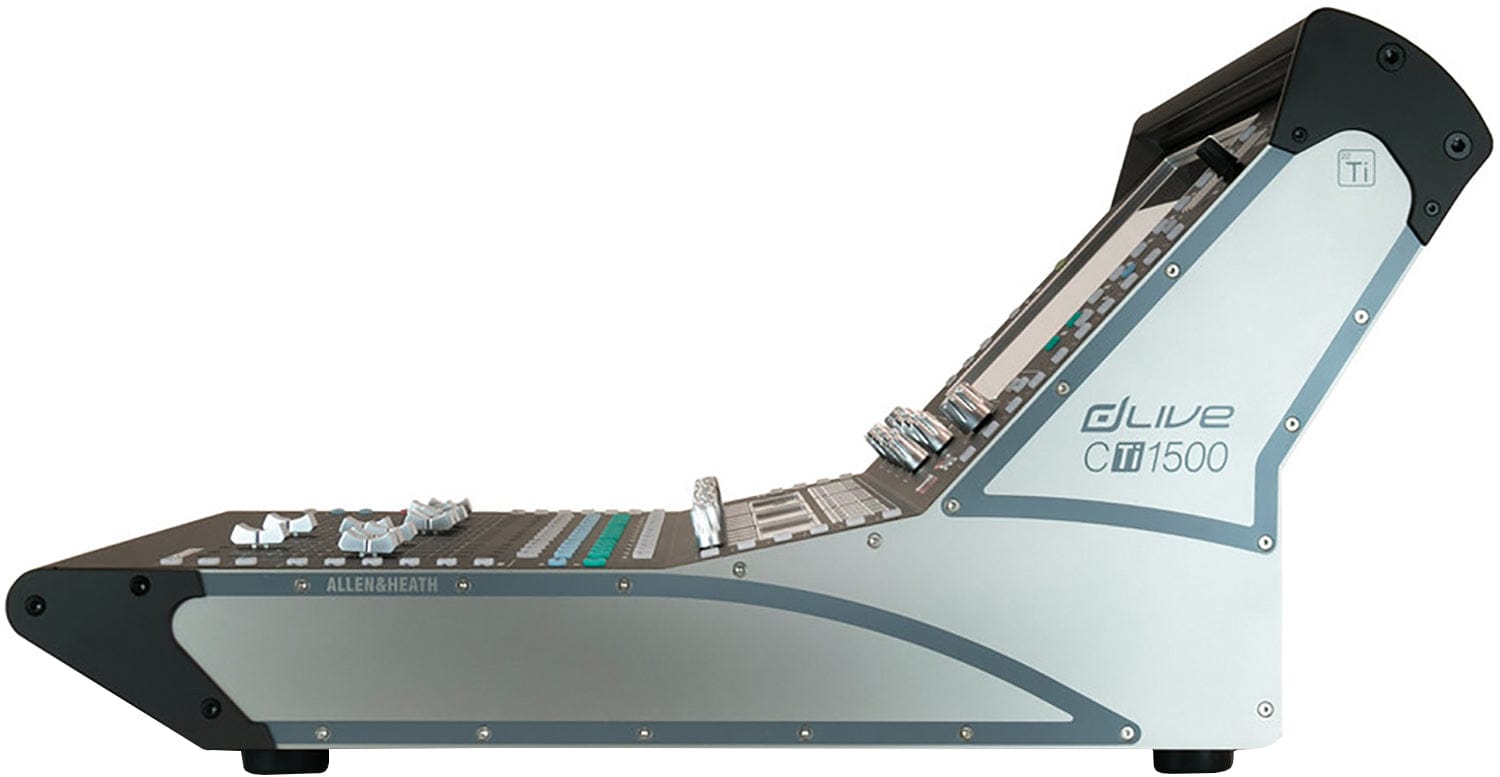

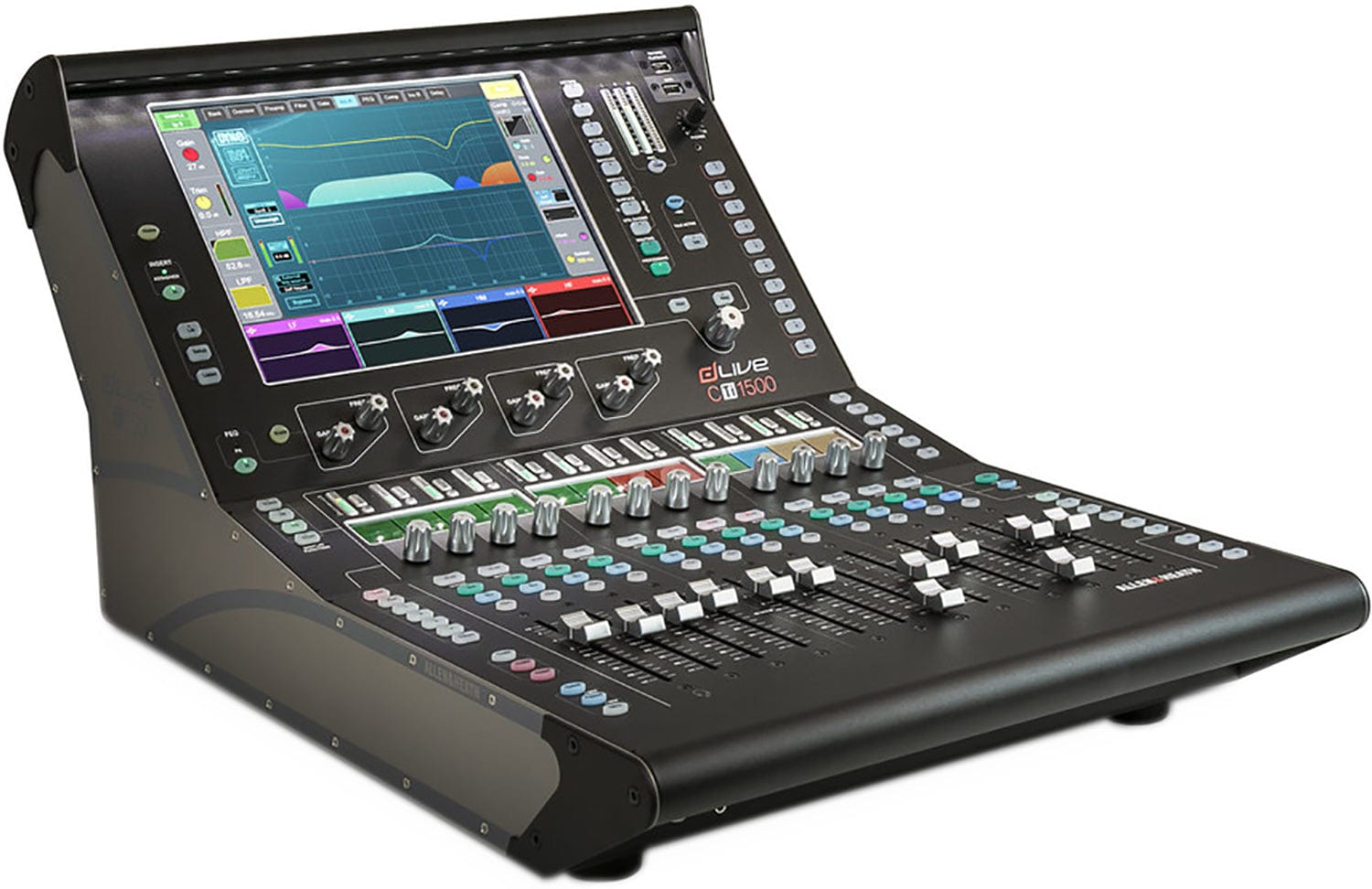

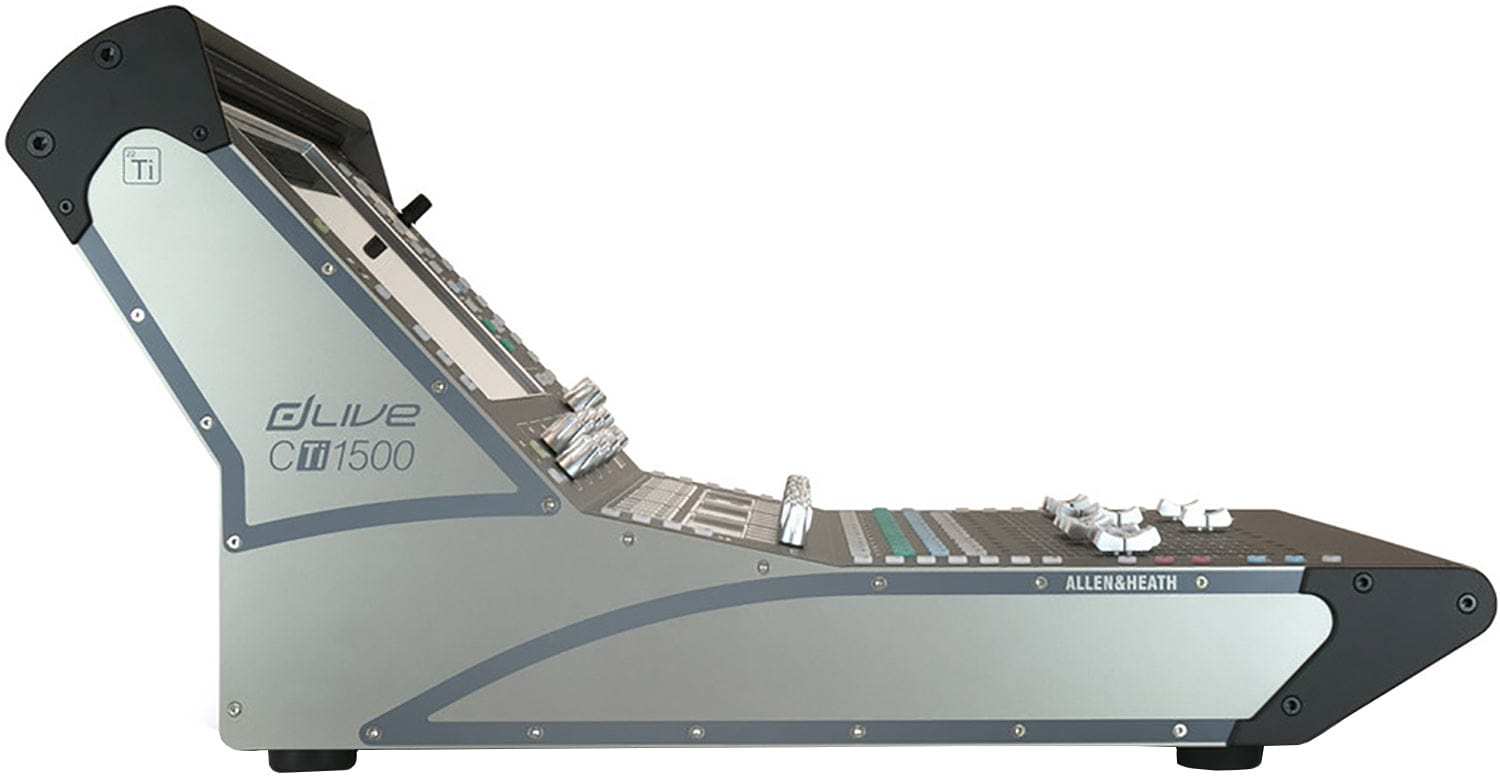

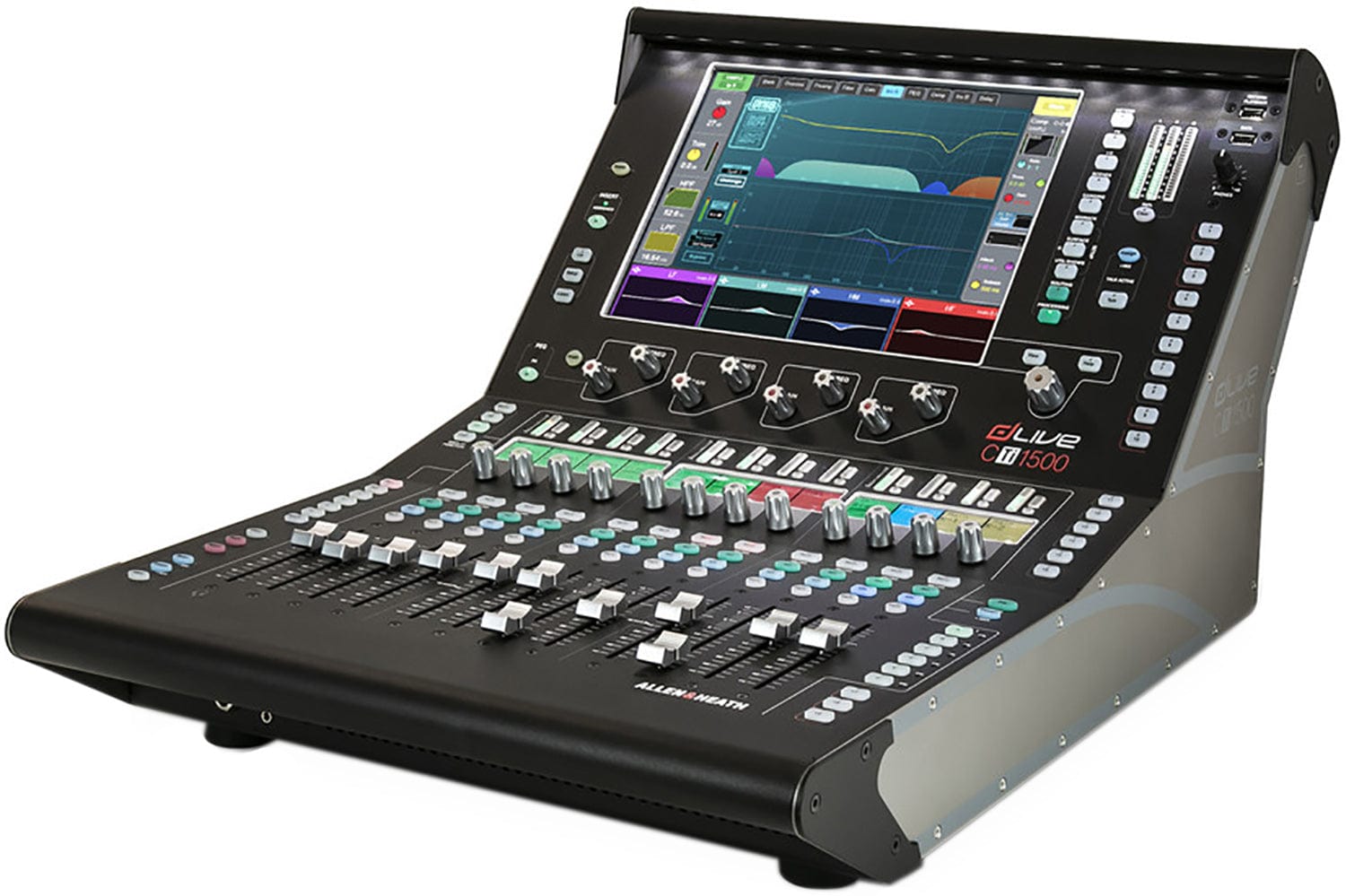

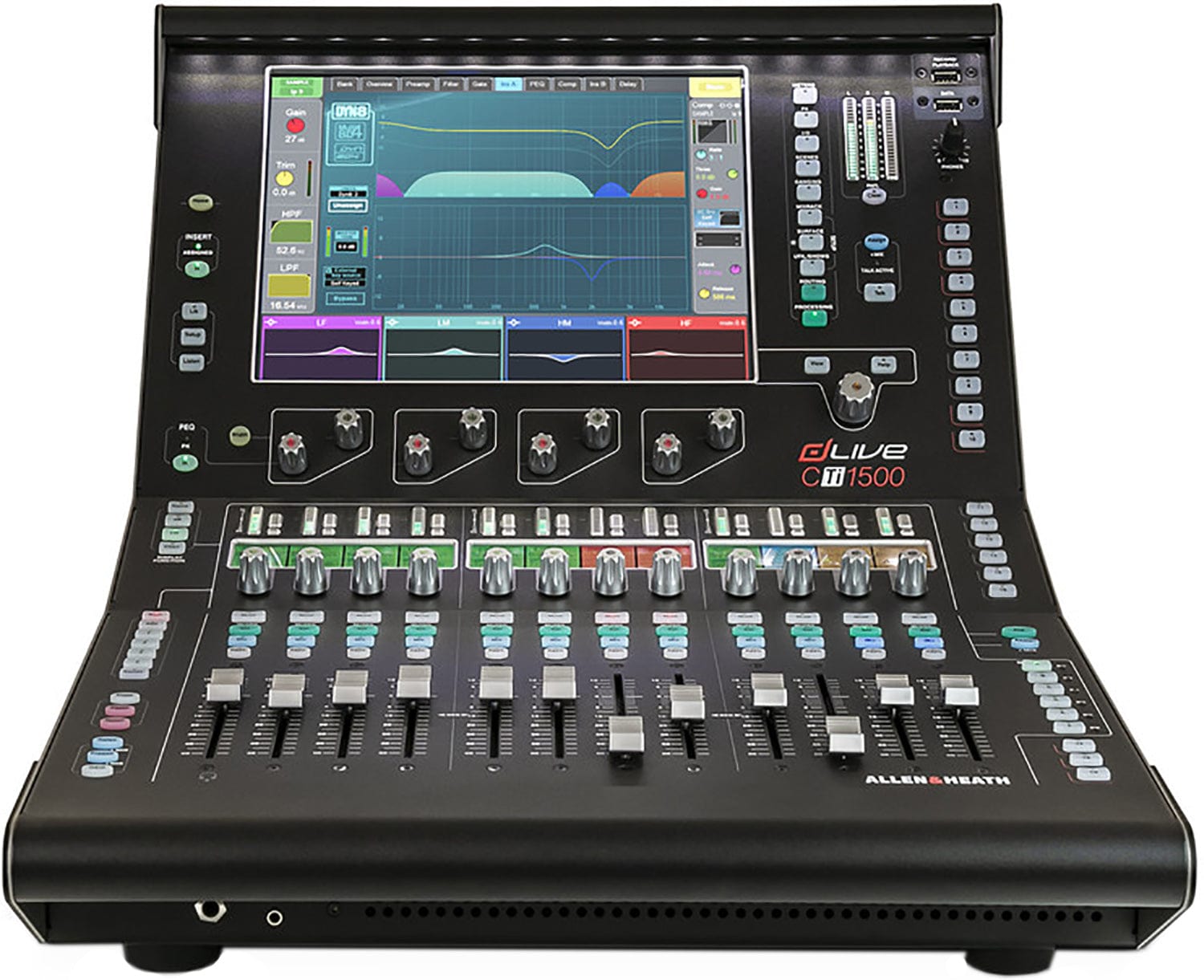

Allen & Heath dLive C Class CTi1500 12 Fader Surface with Stunning 12-Inch Touchscreen
Discover the ultimate solution for live sound with the Allen & Heath dLive C Class CTi1500! This amazing 12 fader surface with a 12-inch touchscreen offers a uniquely flexible experience for any live sound application.
Key Features:
- • Effortless Gesture Control - Pinch, swipe, drag & drop
- • Fully Assignable Layout for Customization
- • USB Stereo Recording and Playback
With its distributed digital mixing system, it separates the mix engine from the control surface, placing audio and processing where you need it. Explore more possibilities on the Allen & Heath website.
Specifications:
- Inputs:
- Mic/Line Inputs: Balanced, +48V phantom power
- Mic/Line Preamp: Fully recallable
- Input Sensitivity: -60 to +15dBu
- Analogue Gain: +5 to +60dB, 1dB steps
- Pad: -20dB Active PAD
- Maximum Input Level: +30dBu (PAD in)
- Input Impedance: >4kΩ (Pad out), >10kΩ (Pad in)
- Mic EIN: -127dB with 150Ω source
- Phantom Power indication: Per socket, internal or external phantom power sensing, triggered at +24V
- Digital Inputs:
- AES3 2 Ch XLR, 2.5Vpp balanced terminated 110 Ω
- SRC range 32k - 192kHz, with bypass option
- System:
- Measured balanced XLR In to XLR Out, 22-40kHz, minimum Gain, Pad out
- Dynamic Range: 110dB
- System Signal to Noise: -92dB
- Frequency Response: 20Hz - 30kHz +0/-0.8dB
- THD+N (analogue in to out): 0.0015% @ +16dBu output, 1kHz 0dB gain
- Headroom: +18dB
- Sampling Rate: 96kHz +/- 20 PPM
- Internal operating Level: 0dBu
- dBFS Alignment: +18dBu = 0dBFS (+22dBu at XLR output)
- Meter Calibration: 0dB meter = -18dBFS (+4dBu at XLR out)
- Meter Peak indication: -3dBFS (+19dBu at XLR out)
- Sampling Rate: 96kHz

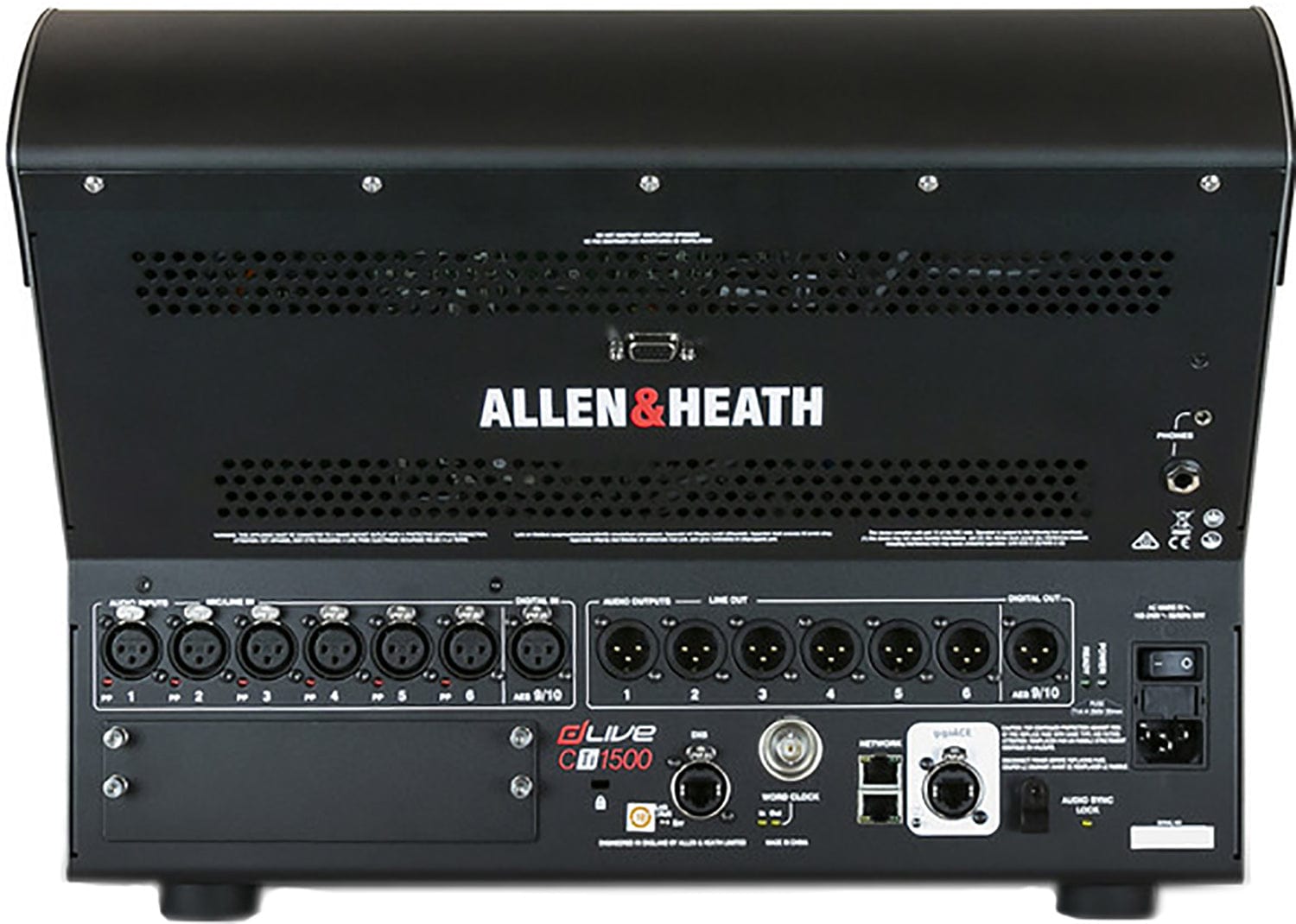

- Outputs:
- Analogue Outputs: Balanced, Relay protected
- Output Impedance: <75Ω
- Nominal Output: +4dBu = 0dB meter reading
- Maximum Output Level: +22dBu
- Residual Output Noise: -92dBu (muted, 20-20kHz), -90dBu (muted, 20-40kHz)
- Digital Outputs:
- AES3 2 Ch XLR, 2.5Vpp balanced terminated 110 Ω
- 96kHz sampling rate, globally switchable to 48kHz, 44.1kHz
- Dimensions and Weights (Width x Depth x Height x Weight):
- Unboxed: 440 x 644 x 337 mm x 11.5kg (17.4'x 25.4'x 13.27') (25.4lbs)
- Boxed: 655 x 820 x 470 mm x 20kg (25.8'x 32.3'x 18.5') (44lbs)
The Allen & Heath dLive C Class CTi1500 is perfect for live sound applications. It's designed for sound engineers and performers. Unboxed, it measures 440 x 644 x 337 mm and weighs 11.5kg (25.4lbs). Boxed, it's 655 x 820 x 470 mm and weighs 20kg (44lbs).
