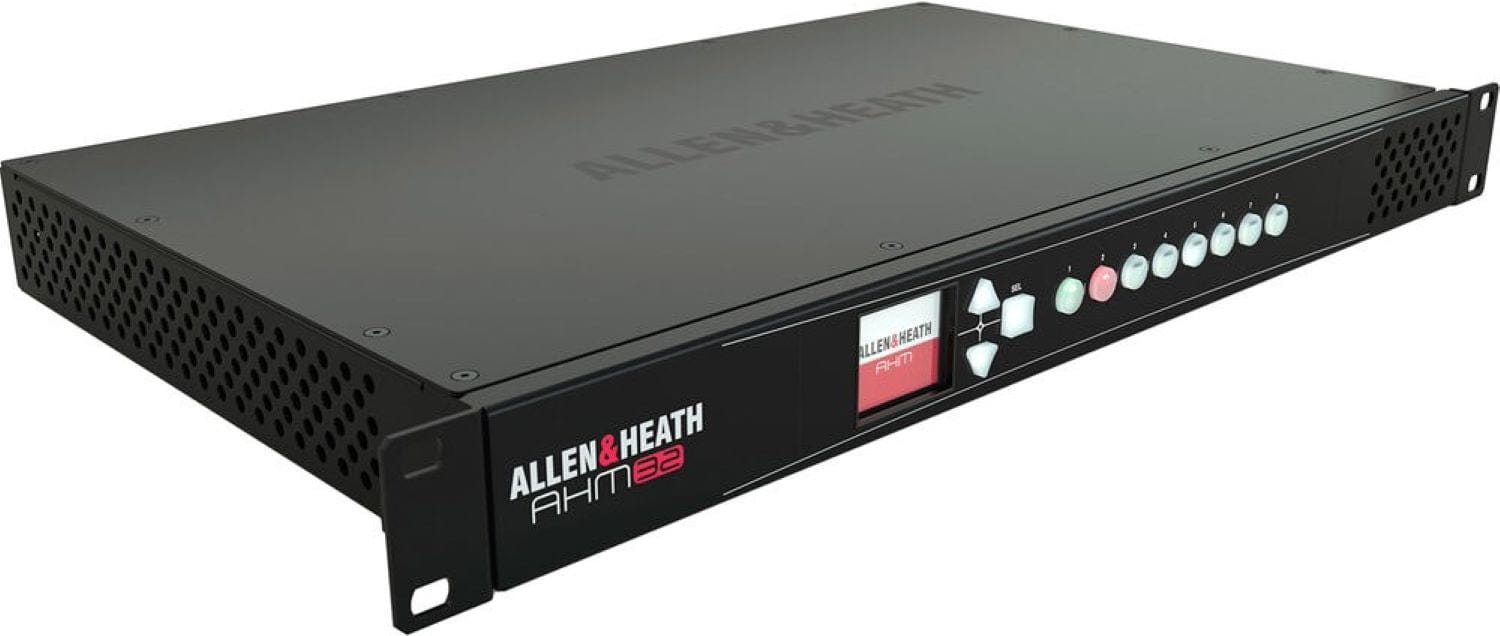

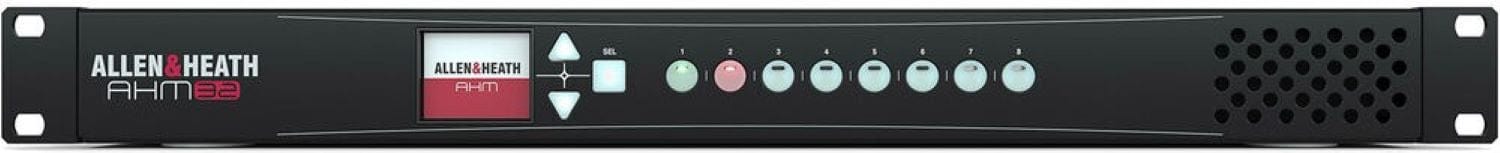

Allen & Heath AH-AHM-32: The Ultimate 32x32 Audio Matrix Processor for Seamless Sound Management
Discover the AHM-32, a powerful audio matrix processor designed for sound management and installation. Ideal for corporate, hospitality, education, event, and multi-purpose venues, as well as retail, theatres, cruise ships, and sports arenas, this processor delivers exceptional audio distribution, paging, conferencing, and speaker processing capabilities.
Complemented by an extensive ecosystem of remote audio expanders, remote controllers, interfaces, apps, and software, the AHM-32 offers endless possibilities for customization and control.
Choose from a range of portable, rack-mountable, or wall-mount audio expanders with proprietary point-to-point Layer-2 or Dante transport protocols. And with a variety of IP remote controllers available for volume control, music source selection, preset recall, and more, you can easily manage your audio system from anywhere.
Key Features:
- • 32x32 Processing Matrix for powerful audio management

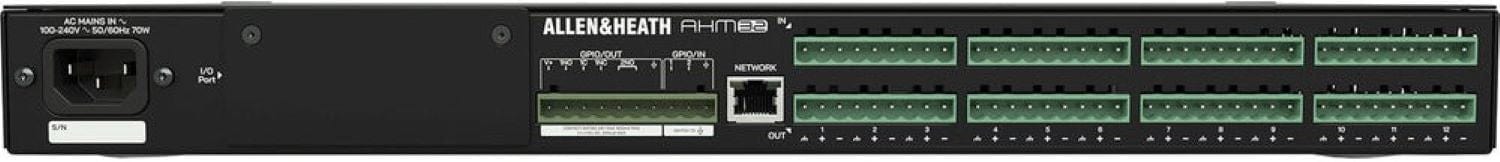

- • 12x12 Local Analogue I/O for easy connectivity
- • I/O Port for Audio Networking (Up to 128x128) for seamless integration
Technical Specifications:
- • Inputs: Balanced Mic/Line Inputs with +48V phantom power, fully recallable Mic/Line Preamp, and more
- • System: Measured balanced XLR in to XLR out, 20-20kHz, +5dB Gain, Pad out, signal @ 0dB (meter), with a dynamic range of 108dB, system signal to noise of -92dB, and more
- • Outputs: Balanced Analogue Outputs with Relay protection, low output impedance, and more
- • Dimensions and Weights: Unboxed: 482.6mm x 270mm x 44mm x 4kg (19” x 10.6” x 1.7” x 8.8lbs), Boxed: 555 x 405 x 150 mm x 5.45kg (21.8” x 15.9” x 5.9” x 12lbs), Operating Temperature Range: 0 deg C to 40 deg C (32 deg F to 104 deg F), Mains Power: 100-240V AC, 50-60Hz, 70W max
The Allen & Heath AH-AHM-32 is a top-of-the-line audio matrix processor perfect for various settings like corporate offices, hotels, schools, event spaces, and more. It's designed for professionals who need seamless audio distribution, paging, conferencing, and speaker processing. With its 32x32 processing matrix, 12x12 local analogue I/O, and I/O port for audio networking, it offers powerful audio management capabilities. The unboxed dimensions are 482.6mm x 270mm x 44mm, weighing 4kg (19” x 10.6” x 1.7” x 8.8lbs), and boxed it's 555 x 405 x 150 mm, weighing 5.45kg (21.8” x 15.9” x 5.9” x 12lbs). It operates in a temperature range of 0 deg C to 40 deg C (32 deg F to 104 deg F) with 100-240V AC, 50-60Hz power, and a max of 70W.
